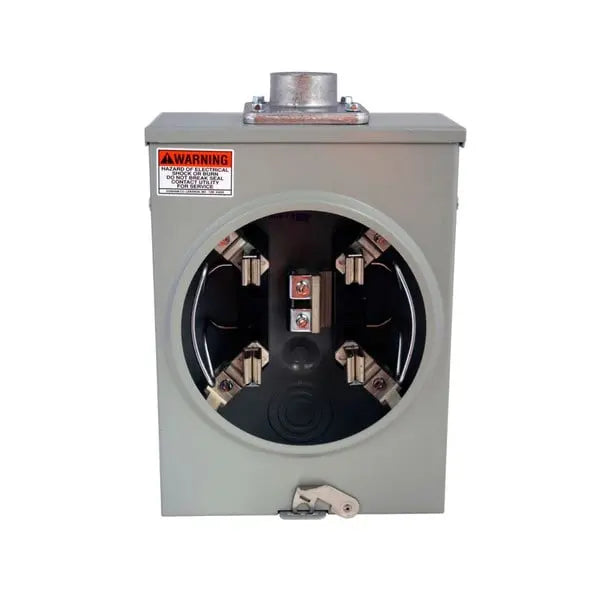

Eaton Meter Socket, Residential Type Cover, 125A

The Meter Socket is designed to provide secure and reliable housing for electric meters in residential and commercial applications. Rated for 125 amps and 600 volts, this socket features 4 jaws for easy meter connection and is compatible with wire sizes ranging from 8 AWG to 2/0 AWG. It supports both top and bottom mounting, with an overhead feed configuration for flexibility in installation. The socket includes a 1-1/4-inch bolt-on hub and weighs 5 pounds. With overall dimensions of 10.88 inches in height, 8 inches in width, and 3.5 inches in length, this meter socket is engineered for durability and ease of use.

Key Features:

• Product Type: Meter Socket
• Amperage Rating: 125 Amps
• Voltage Rating: 600V
• Mounting: Top/Bottom Mount
• Feed Type: Overhead Feed
• Wire Size: 8 AWG to 2/0 AWG
• Number of Jaws: 4 Jaws
• Wire Configuration: 3 Wires
• Hub Size: 1-1/4-inch Bolt-On Hub
• Dimensions:
• Overall Height: 10.88 inches
• Overall Width: 8 inches
• Overall Length: 3.5 inches
• Weight: 5 lbs
• Application: Used for secure and safe electric meter connections

The Meter Socket provides a durable, efficient, and flexible solution for metering applications, ensuring safe operation and compliance with electrical standards.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1004931BCH
