Duracell Power Center 15kW Hybrid Inverter
Duracell Power Center Max Hybrid 15 kW Inverter

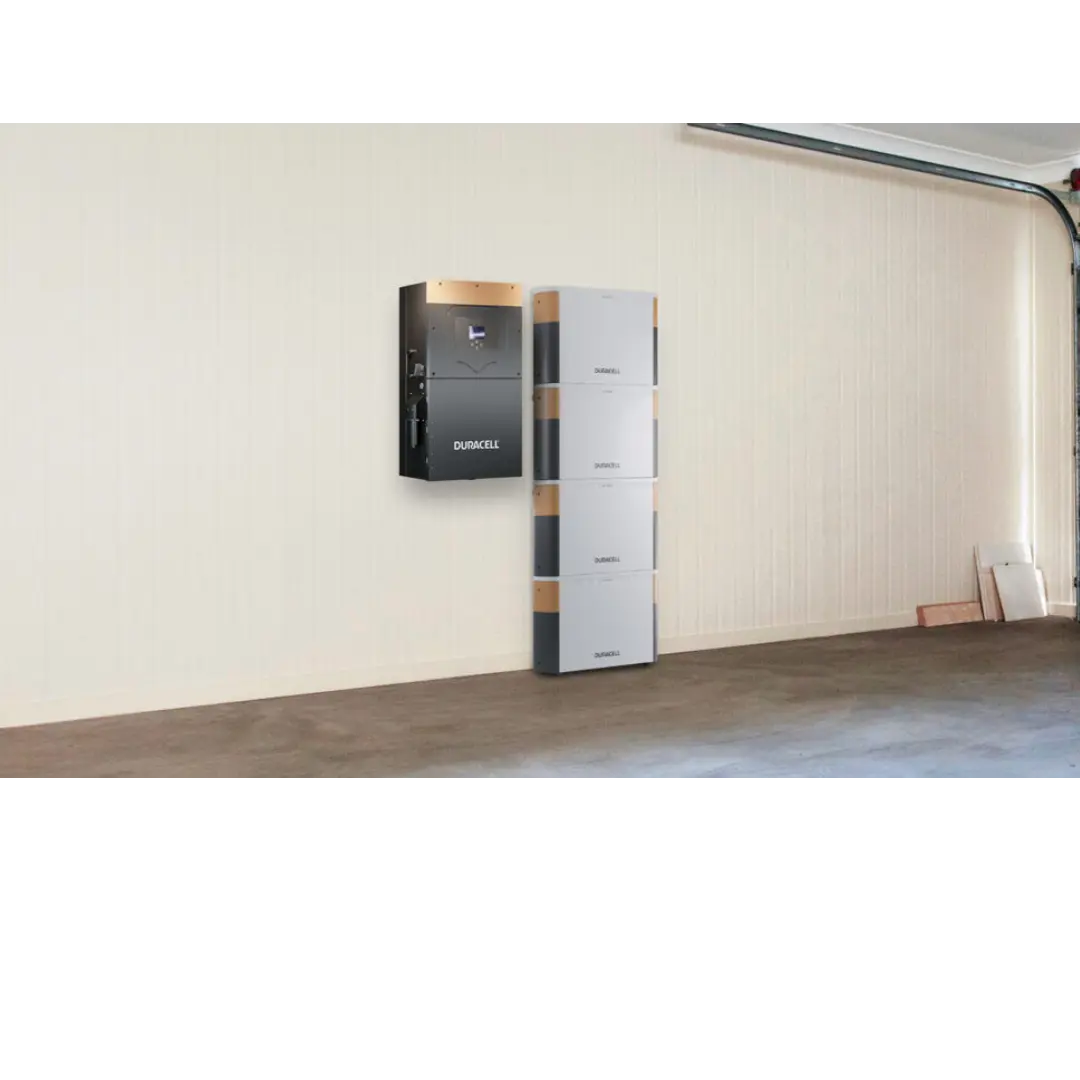

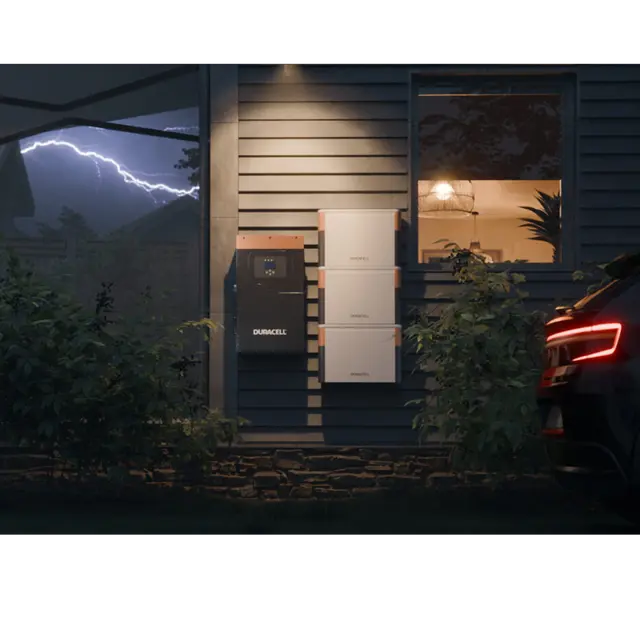

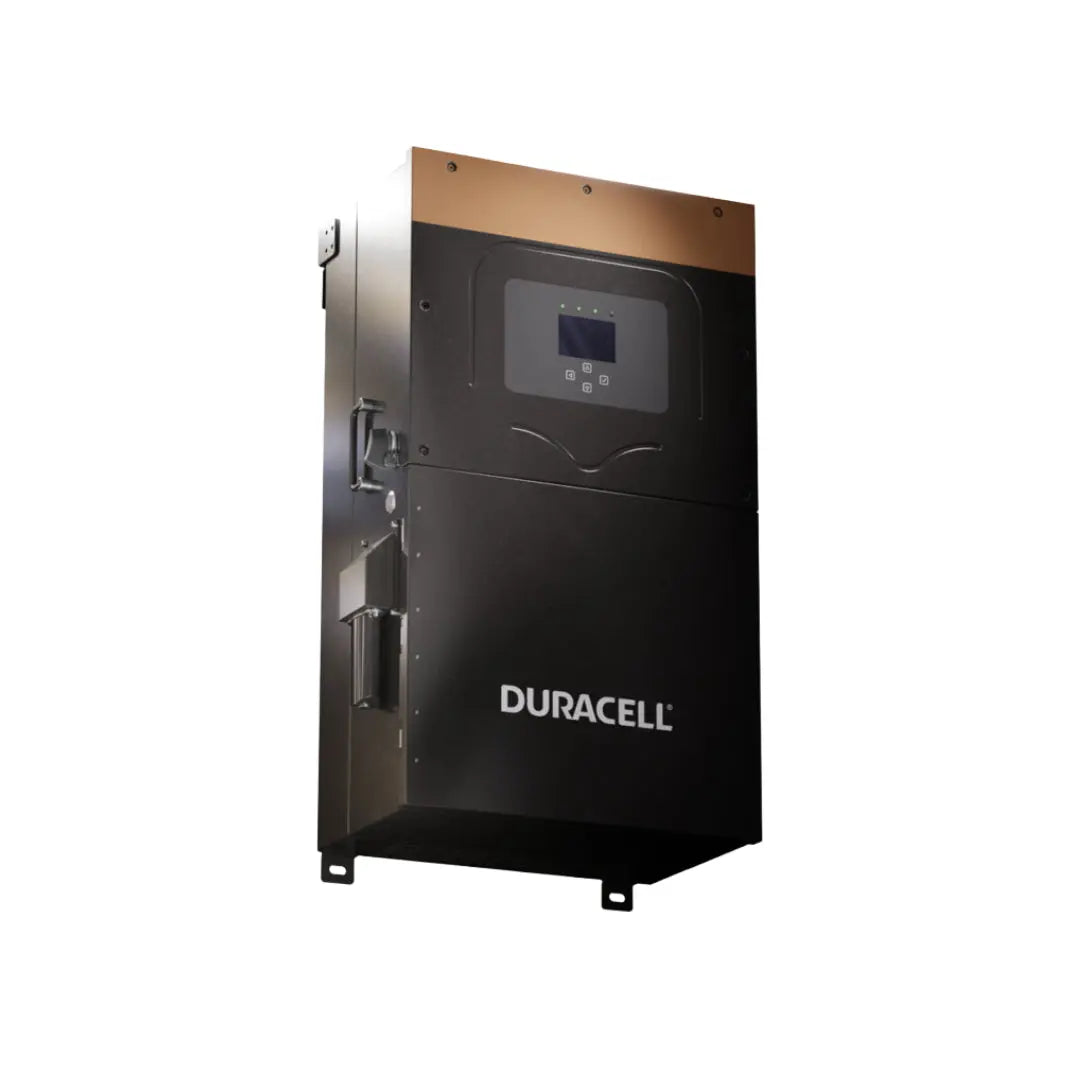

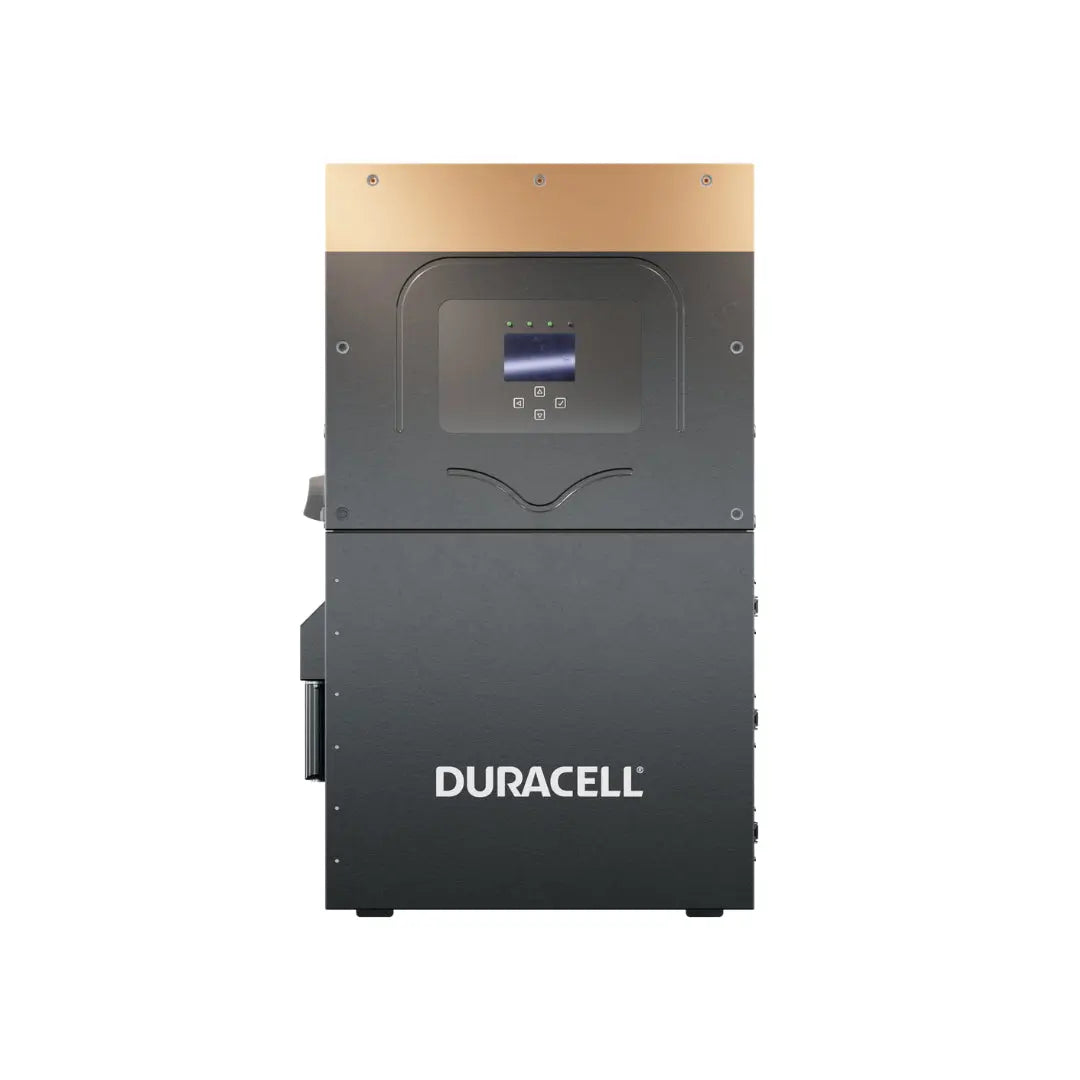

Experience uninterrupted, high-capacity power with the Duracell Power Center Max Hybrid 15 kW Inverter. Designed for both residential and commercial applications, this advanced hybrid inverter seamlessly manages solar, grid, and battery power to keep your home or business running smoothly. With a 15,000 W output and support for up to 20 stackable batteries, it can power multiple large appliances simultaneously while offering scalable energy storage for future needs. Engineered for reliability, the Max Hybrid 15 features intelligent power switching, robust safety protections, and a weather-resistant NEMA 3R / IP65 enclosure for dependable operation in any environment.
Key Features
- Scalable Energy Storage — Supports up to 20 stackable batteries per inverter, letting you expand your backup power over time
- Hybrid Power Management — Intelligently switches between solar, battery, and grid to maximize efficiency and lower energy costs
- All-Weather Protection — Built with a NEMA 3R / IP65 rated enclosure for reliable outdoor performance
- Smart, Safe Operation — Integrated overload, short-circuit, and environmental protections keep systems and devices secure
- Flexible Voltage & Frequency — Supports 120/240/208 V split-phase and 60/50 Hz operation for a wide range of installations
- High Efficiency — Peak efficiency up to 97.5%, ensuring maximum energy conversion and reduced system losses
- 15 kW Continuous Power — Delivers high output capacity to run multiple household or commercial loads at once
- Parallel Stacking — Stack up to 12 units for large-scale commercial or whole-home applications
Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 15,000W |
| Continuous AC Power with PV | 15,000W / 62.5A L-L (240V) |
| Continuous AC Power from Batteries | 12,000W / 50A L-L (240V) |
| Surge AC Power (10 sec) | 24,000VA L-L (240V) |
| Surge AC Power (100ms) | 30,000VA L-L (240V) |
| Max PV Input Power | 19,500W |
| Max DC Voltage (Voc) | 500V @ 26A |
| MPPT Voltage Range | 125–425V |
| Number of MPPTs | 3 |
| Max Solar Strings Per MPPT | 2 |
| Max DC Current per MPPT | 26A (Self Limiting) |
| Max AC Coupled Input | 19,200W |
| Parallel Stacking | Up to 12 units |
| Connections | 120/240/208V Split Phase |
| Frequency | 60/50 Hz |
| CEC Efficiency | 96.5% (Peak 97.5%) |
| Total Harmonic Distortion (THD) | 0.03 |
| Power Factor | +/- 0.9–1.0 |
| Response Time (Grid-Tied to Off-Grid) | 8ms |
| Idle Consumption (No Load) | 90W |
| Environmental Rating | NEMA 3R / IP65 |
| Dimensions | 19.7 x 15 x 11.9 in. |
| Weight | 135 lbs. |
| SKU | 1669001 |
Certifications & Protections
- Electronics Certified Safety by SGS Labs to NEC & UL Specs (NEC 690.48 & NEC 705.4/6)
- Grid Sell Back: UL1741-2010/2018, IEEE1547a, IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, UL1642, UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3, FCC15 Class B, UL1741SB
- CA Rule 21, HECO Rule 14H
- Integrated PV DC Disconnect Switch (NEC 240.15)
- Integrated Ground Fault Detection (NEC 690.5)
- Integrated PV Arc Fault Detection (NEC 690.11)
- PV Input Lightning Protection
- PV String Input Reverse Polarity Protection
- AC Output Breakers — 200A
- 200A x2 Battery Breaker/Disconnect
- Surge Protection: Type II DC / Type II AC
Documents & Resources
Warranty
10-Year Limited Warranty — Register your product at duracellpowercenter.com/register
