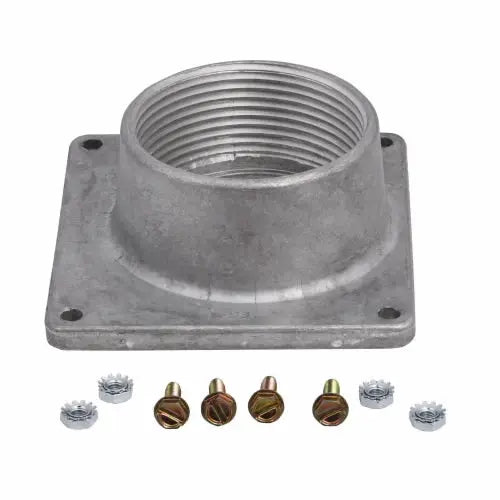

DS300H2 - 3" Type 3R Plate Type Hub For DG DH DT Through 200

DS300H2 3 Inch Rainproof Conduit Hub for Superior Protection and Versatility

3" Type 3R Plate Type Hub For DG DH DT Through 200
Rainproof Conduit Hub, 4.25 In Overall Length, 4.25 In Overall Width, 2 In Overall Height, 0.58 LB

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.

Key Features:

• Accessory type: Rainproof conduit hub
• Dimensions: 4.25 in × 4.25 in × 2.00 in
• For use with: MLO and MCB loadcenters, CB enclosures, CH8B150RF, CH8B200RF, general duty and heavy duty, double throw safety switches up to 100A (for use with RGDN and RFDN)
• Made in USA: Yes
• Media: Yes
• Overall height: 2 in
• Overall width: 4.25 in
• Package quantity: 1 piece

Documents:

Specifications and datasheets
Eaton Specification Sheet - DS300H2

Durable Design for Harsh Environments

The DS300H2 3 inch rainproof conduit hub is engineered to provide exceptional protection against rain and weather exposure, meeting Type 3R standards. Ideal for outdoor electrical installations, this plate-type hub is crafted with robust materials that resist corrosion and damage. It ensures lasting performance, making it a reliable solution for conduit connections in DG, DH, and DT electrical enclosures. Its rainproof feature safeguards wiring systems from moisture, reducing maintenance costs and enhancing safety.

Compatibility and Application Flexibility

This 3 inch rainproof conduit hub offers wide compatibility, fitting through-200 conduits commonly used in industrial and commercial settings. Specifically designed for DG, DH, and DT enclosures, it seamlessly integrates into existing conduit systems. The hub’s plate type construction allows for easy mounting on various surfaces, providing flexibility in installation. This makes the DS300H2 an excellent choice for projects requiring durable conduit hubs that can withstand harsh conditions.

Installation Efficiency and Reliability

The DS300H2 has a user-friendly design that simplifies installation, reducing labor time while ensuring a tight, rainproof seal. Its precise threading matches industry standards for conduit fittings, ensuring a secure and leak-proof connection. The robust construction also minimizes the risk of damage during installation. These features combine to offer electrical professionals a trustworthy hub that maintains operational integrity across diverse environments, enhancing the overall safety and longevity of conduit systems.
