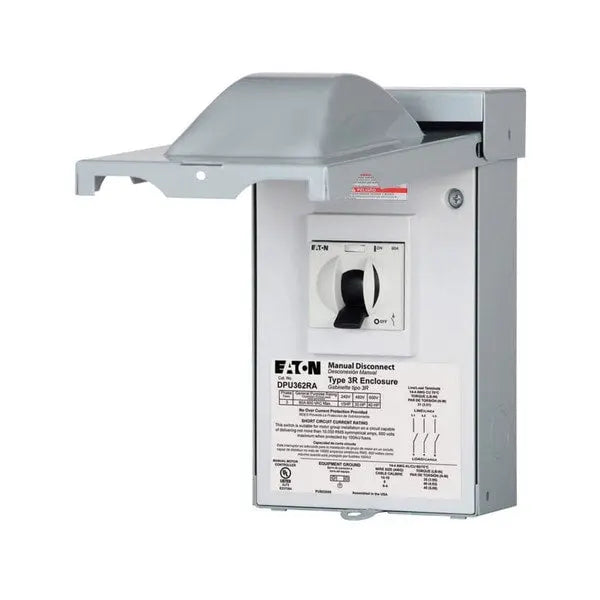

DPU362RA - Air Conditioning Disconnect Switch

The Air Conditioning Disconnect Switch is designed for reliable disconnection of high-power appliances. With a 60A capacity, this switch supports both 240V and 480V applications and is ideal for 3-phase systems. Constructed from galvanized steel, the enclosure ensures durability and resistance to harsh weather conditions. The switch is non-fusible, with wire sizes ranging from 14 to 4 AWG (Cu/Al 60°C or 75°C), providing flexibility for various installation needs.

Key Features:

• 60A non-fusible disconnect for air conditioning and similar systems
• Supports 240/480 V 3-phase applications
• Galvanized steel enclosure for durability and weather resistance
• Wire size range: 14 to 4 AWG (Cu/Al 60°C or 75°C)
• Rated for 15 HP at 240V and 30 HP at 480V

This Air Conditioning Disconnect Switch offers a safe and effective solution for disconnecting power to large appliances, ensuring reliable operation in residential or commercial settings.

Documents:

Catalogs
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6

Specifications and datasheets
Eaton Specification Sheet - DPU362RA
