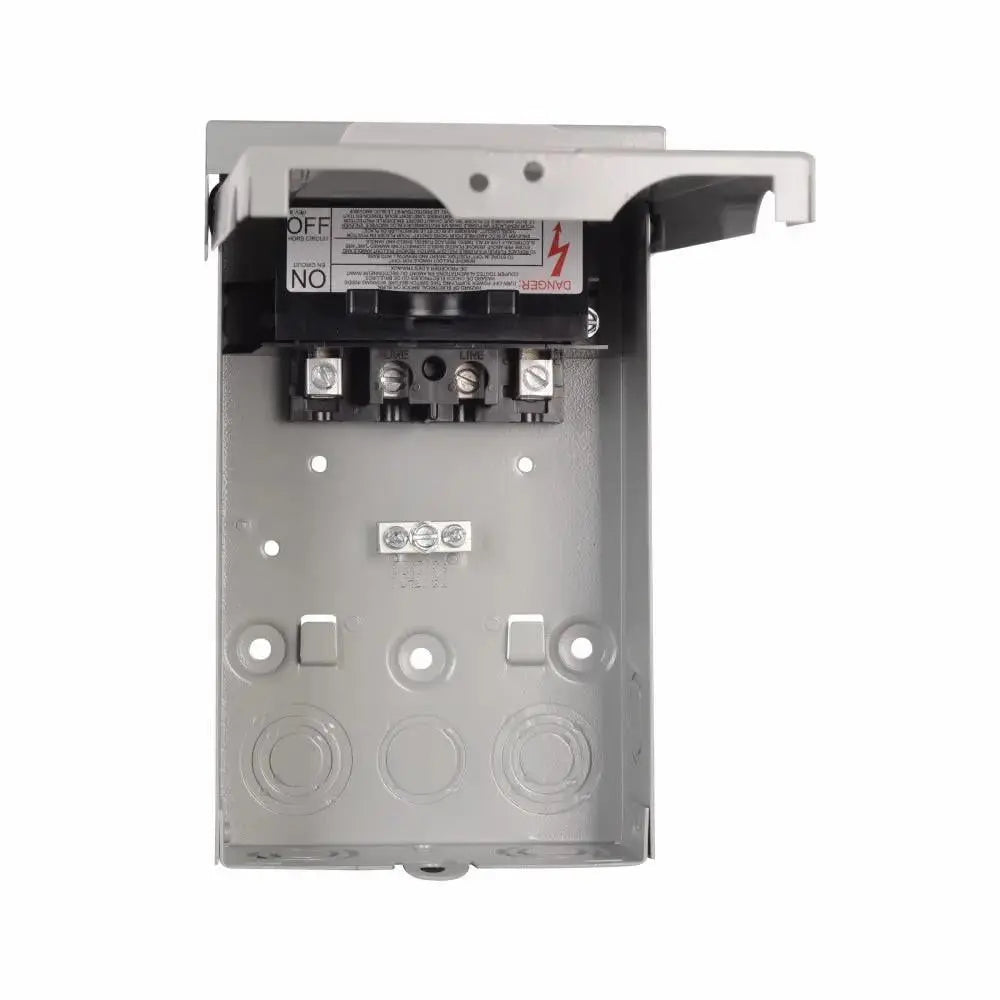

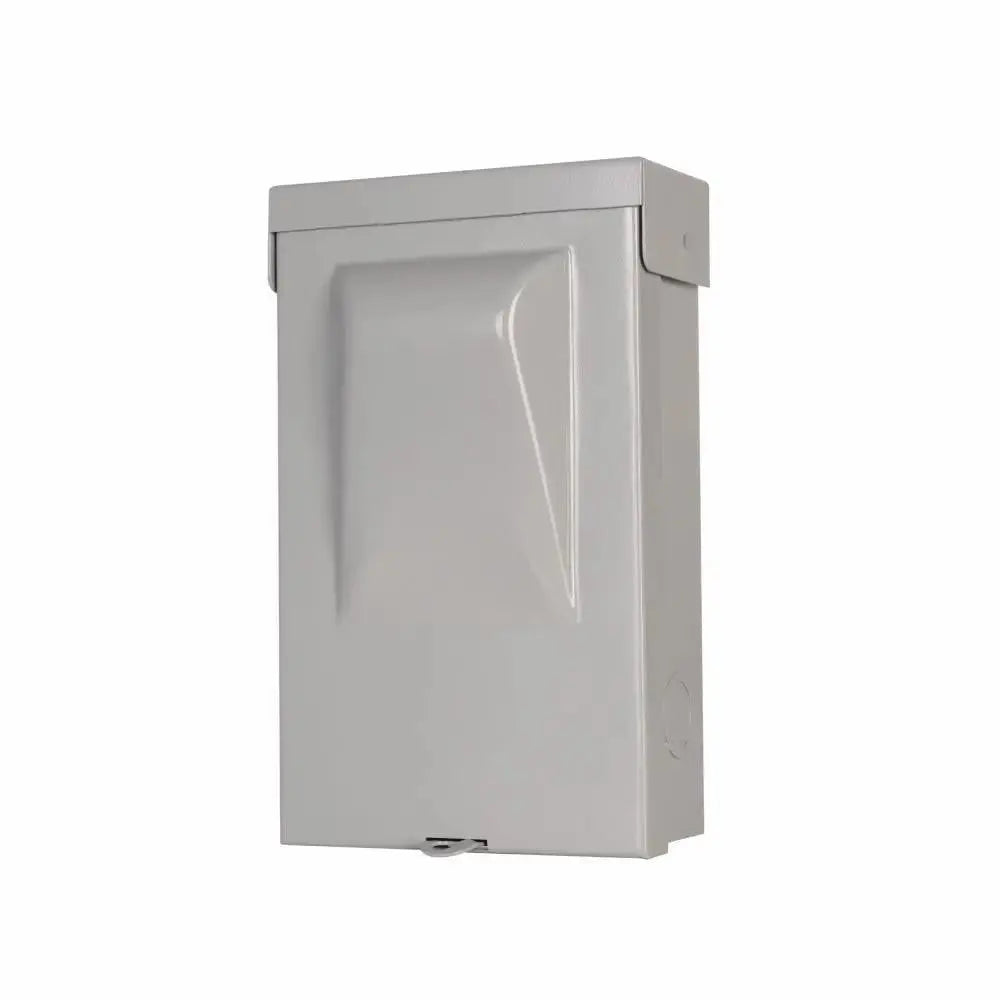

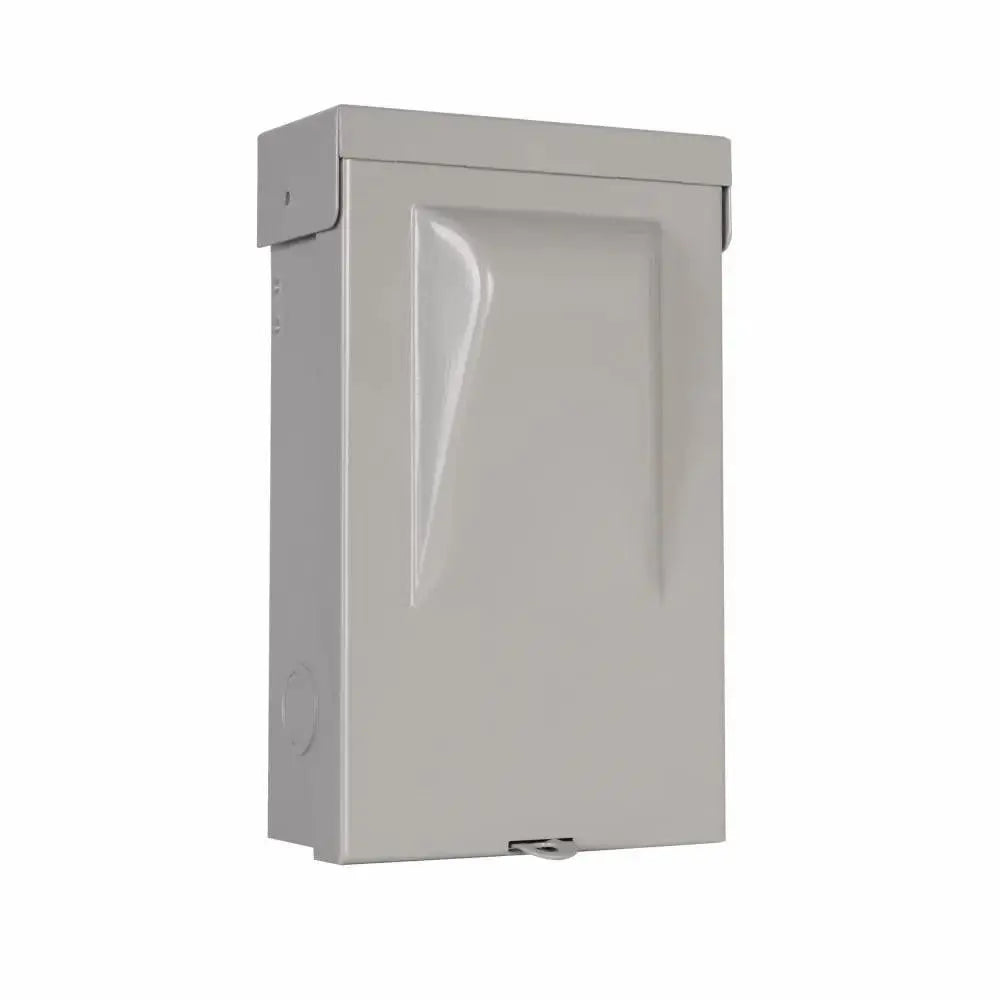

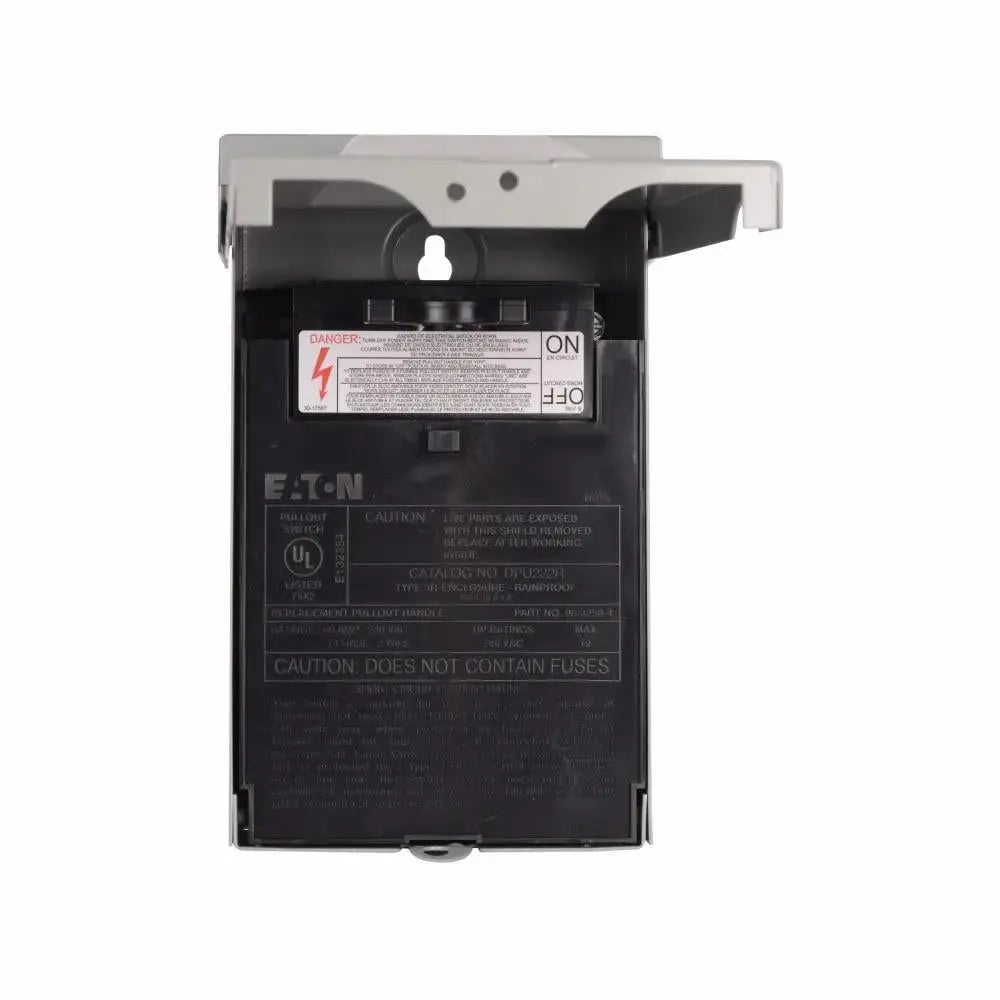

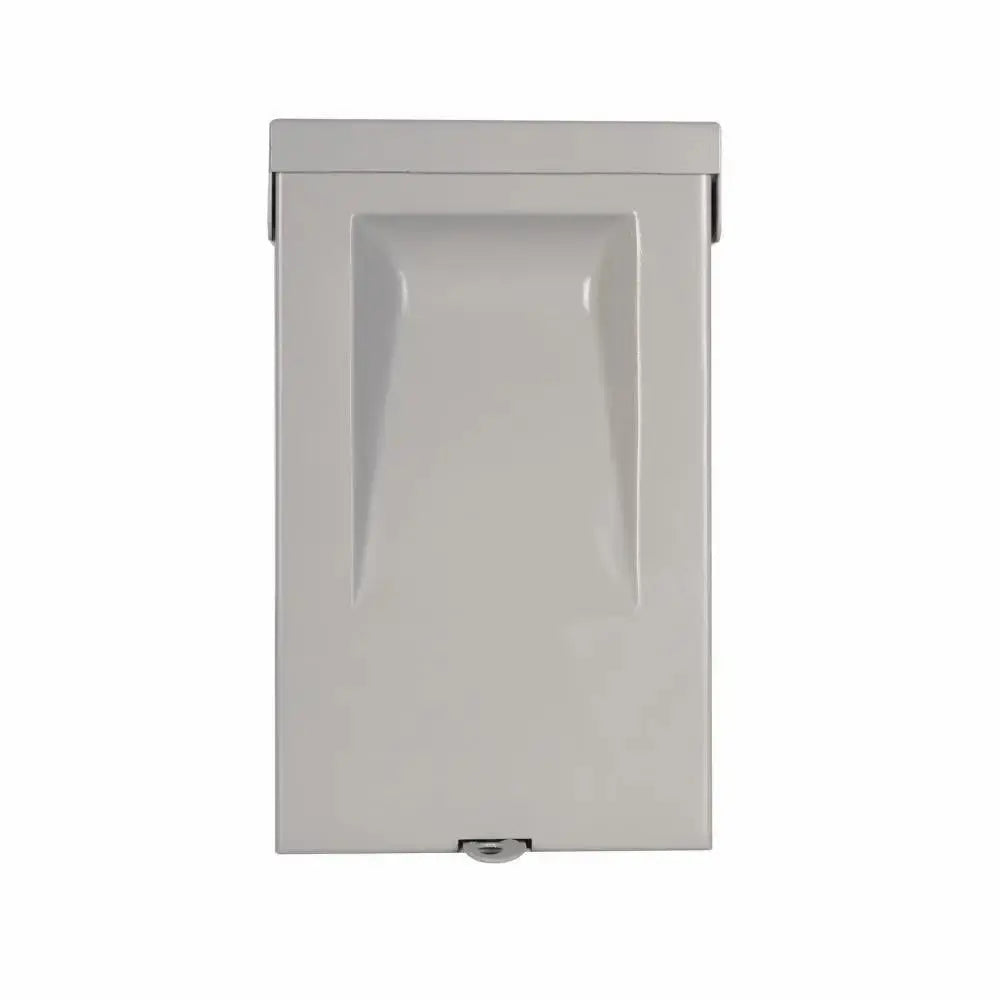

DPU222R - 60A/2P Air Conditioning Non-Fused Disconnect 240V

Explore the Features of the 60A Air Conditioning Disconnect

60A/2P Air Conditioning Non-Fused Disconnect 240V
Air Conditioning Disconnect, Galvanized Steel (Enclosure) Material, Gray, 9 In Overall Length, 5.5 In Overall Width, 2 In Overall Height, 3 LB

Key Features:

• Accessory Type: Air Conditioning Disconnect
• Made in USA: Yes
• Overall Height: 2 in
• Overall Width: 5.5 in
• Package Quantity: 10 PK; 1 CT
• Standards Met: UL Listed; CSA Certified
• Material: Galvanized Steel (Enclosure)


Documents:

Specifications and datasheets
Eaton Specification Sheet - DPU222R

Overview of the 60A Air Conditioning Disconnect

The 60A air conditioning disconnect, model DPU222R, is designed for efficient and safe HVAC system management. This non-fused disconnect switch operates at 240 volts and supports two poles, ensuring reliable disconnection of power during maintenance or emergencies. Ideal for residential or commercial air conditioning units, the DPU222R offers a straightforward way to isolate electrical circuits, enhancing safety while minimizing downtime. Its rugged construction resists harsh environmental conditions, making it a dependable choice for protecting your cooling system.

Durability and Safety Features

This 60A air conditioning disconnect is built with high-quality materials that withstand regular use and exposure to the elements. The non-fused design means it’s ideal when external fuses or circuit breakers are used, providing an added layer of flexibility for electricians and installers. Safety is a priority, and the DPU222R includes a locking mechanism to prevent unauthorized operation, ensuring compliance with electrical codes and protecting both equipment and users from electrical hazards.

Installation and Compatibility

The DPU222R 60A air conditioning disconnect is easy to install, featuring standard mounting options compatible with most air conditioning units and HVAC systems. Its compact size fits neatly near the outdoor condenser unit, offering convenient access for service personnel. Designed to handle 240V circuits, this switch integrates seamlessly with existing electrical setups, reducing installation time and complexity. Whether upgrading older systems or installing new equipment, this disconnect switch provides a reliable and straightforward solution for power isolation.
