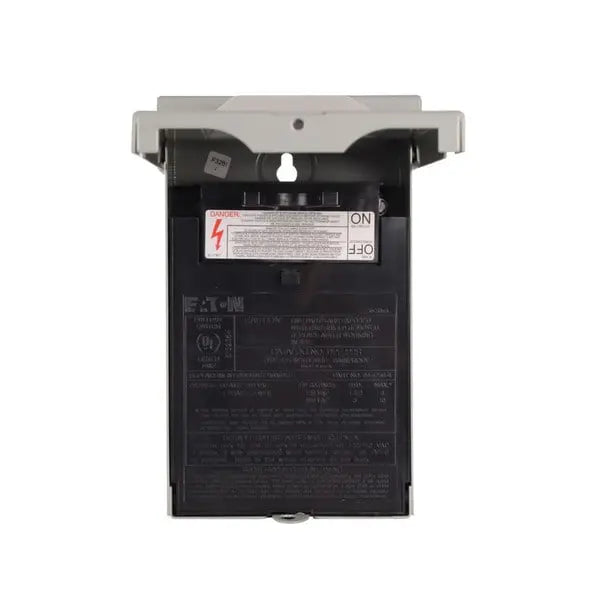

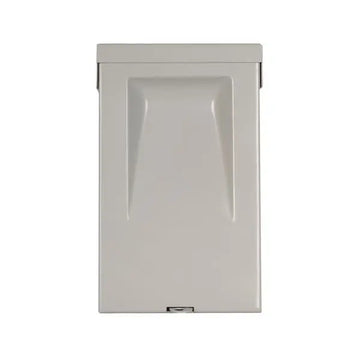

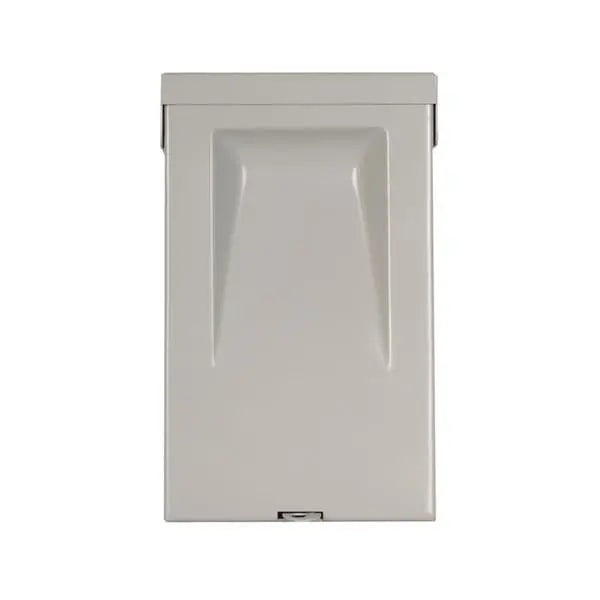

DPF222R - Air Conditioning Disconnect

The Eaton 60A 120/240V Non-Fusible Air Conditioning Disconnect is engineered for dependable power disconnection in residential and light commercial HVAC systems. Housed in a durable NEMA 3R galvanized steel enclosure, it is suitable for outdoor installations, providing resistance against rain and external elements. This disconnect switch features a non-fusible, pullout design, facilitating straightforward operation and maintenance.

Key Features:

• 60 Amp, 120/240V AC rating
• Non-fusible, pullout design for easy operation
• NEMA 3R galvanized steel enclosure suitable for outdoor use
• Supports copper or aluminum conductors ranging from #14 to #3 AWG
• Compact dimensions: approximately 5.4 in (L) x 3.15 in (W) x 8.7 in (H)
• Lightweight design for easy installation
• Ideal for air conditioning units and other outdoor equipment

This disconnect switch offers reliable performance and safety for various electrical disconnection needs.

Documents:

Catalogs
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6

Specifications and datasheets
Eaton Specification Sheet - DPF222R
