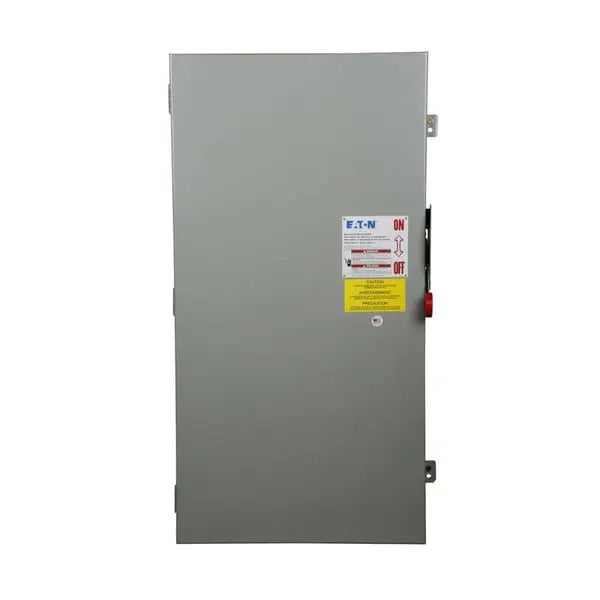

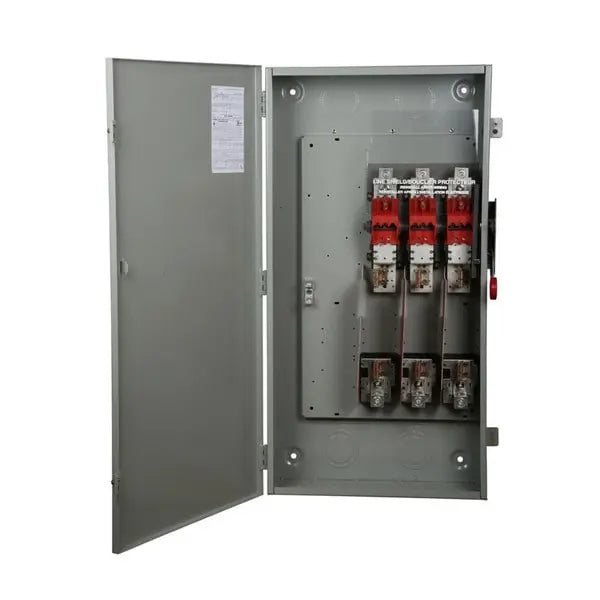

DH365FGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch is built for heavy-duty applications, providing reliable protection in high-capacity systems. Featuring a 400 A rating and Class H fuses, this switch is designed for three-phase systems with a 600 V capacity. The painted steel enclosure is NEMA 1 rated for indoor environments, offering durability and safety.

Key Features:

• 400 A rating with a 600 V capacity
• Three-pole, three-wire configuration for three-phase systems
• Fusible design without neutral for added safety
• NEMA 1 rated painted steel enclosure for indoor use
• Supports up to 350 HP (3-phase @ 480/600 V)
• Compatible with wire sizes ranging from (2) 1/0–(2) 300 Kcmil or (1) 1/0–(1) 75 Kcmil

This Eaton Heavy Duty Fused Safety Switch is ideal for protecting high-power electrical systems and ensuring efficient operation in demanding industrial environments.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH365FGK
