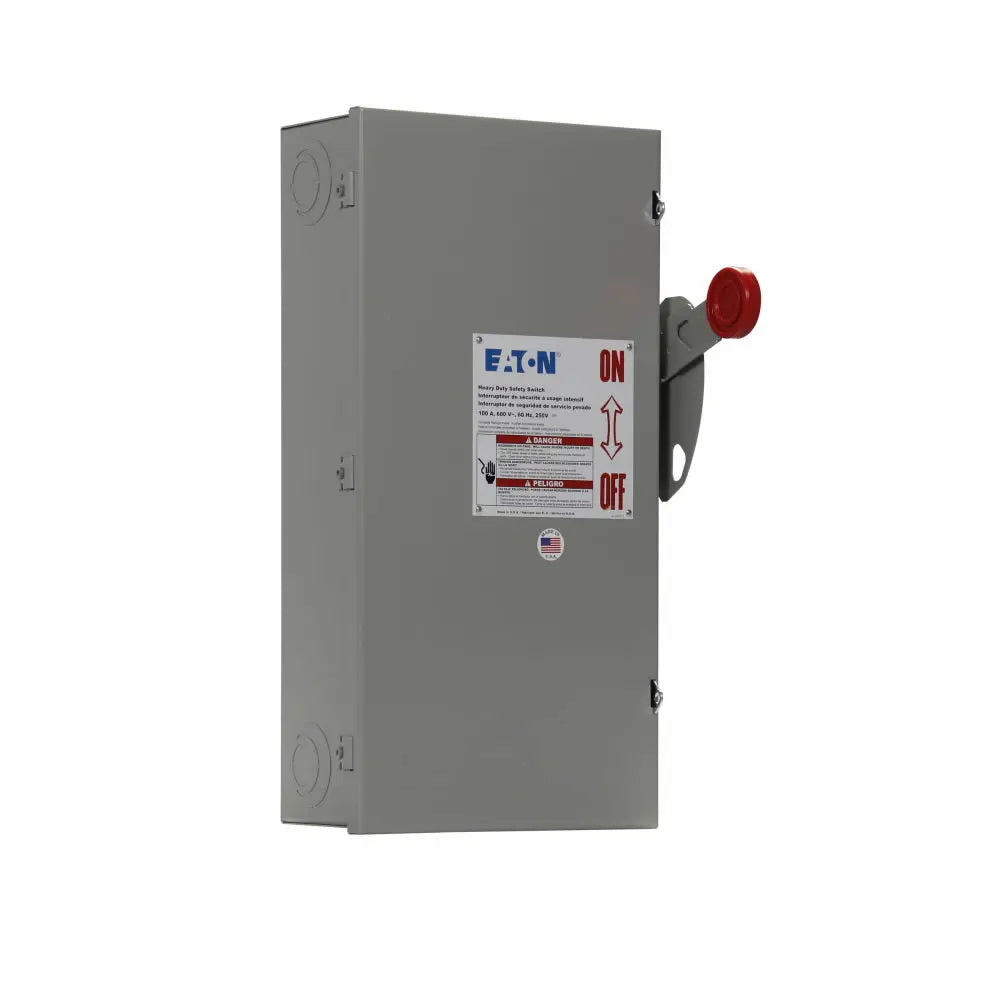

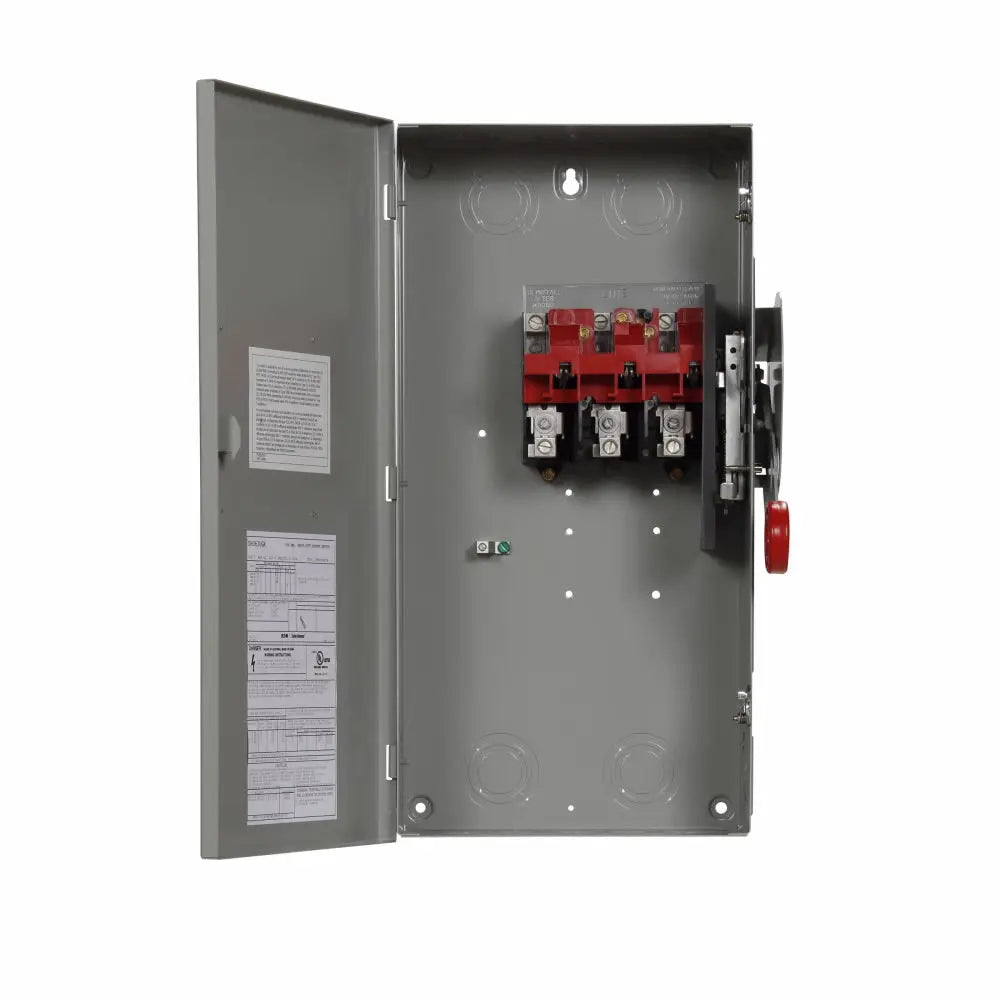

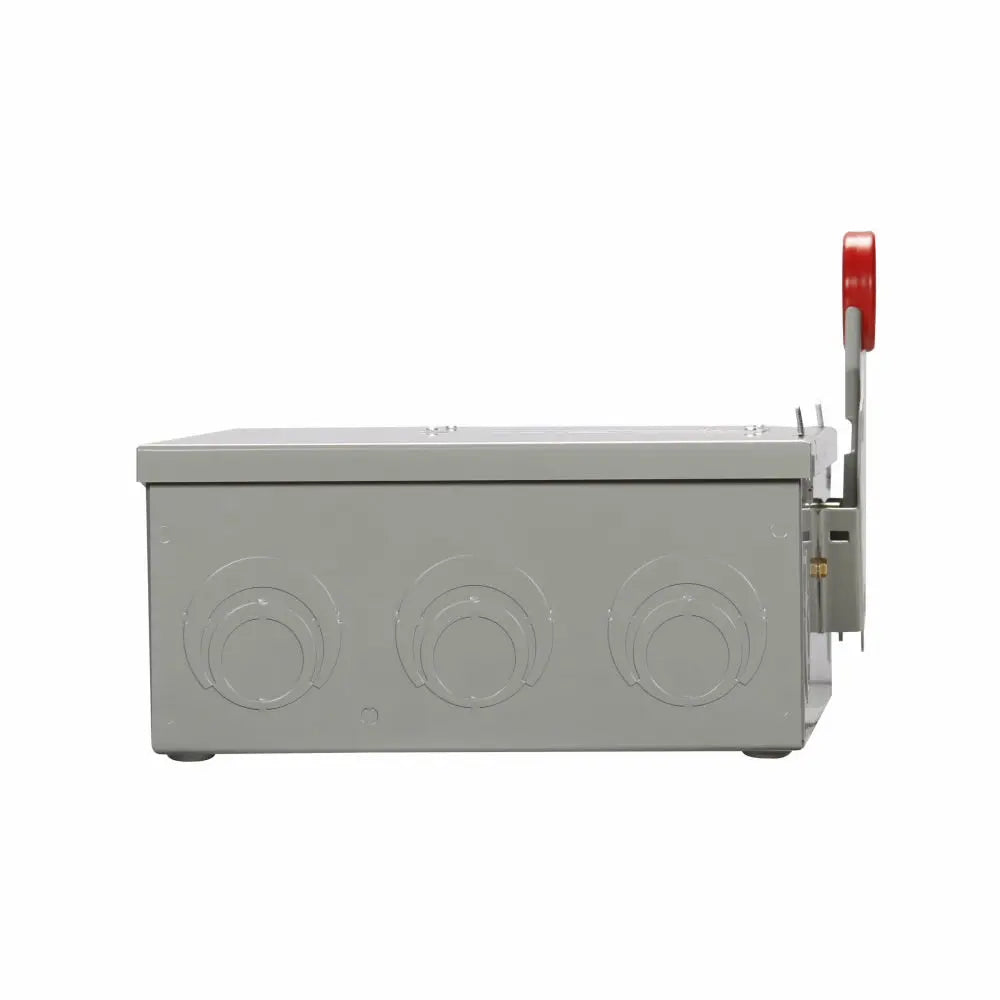

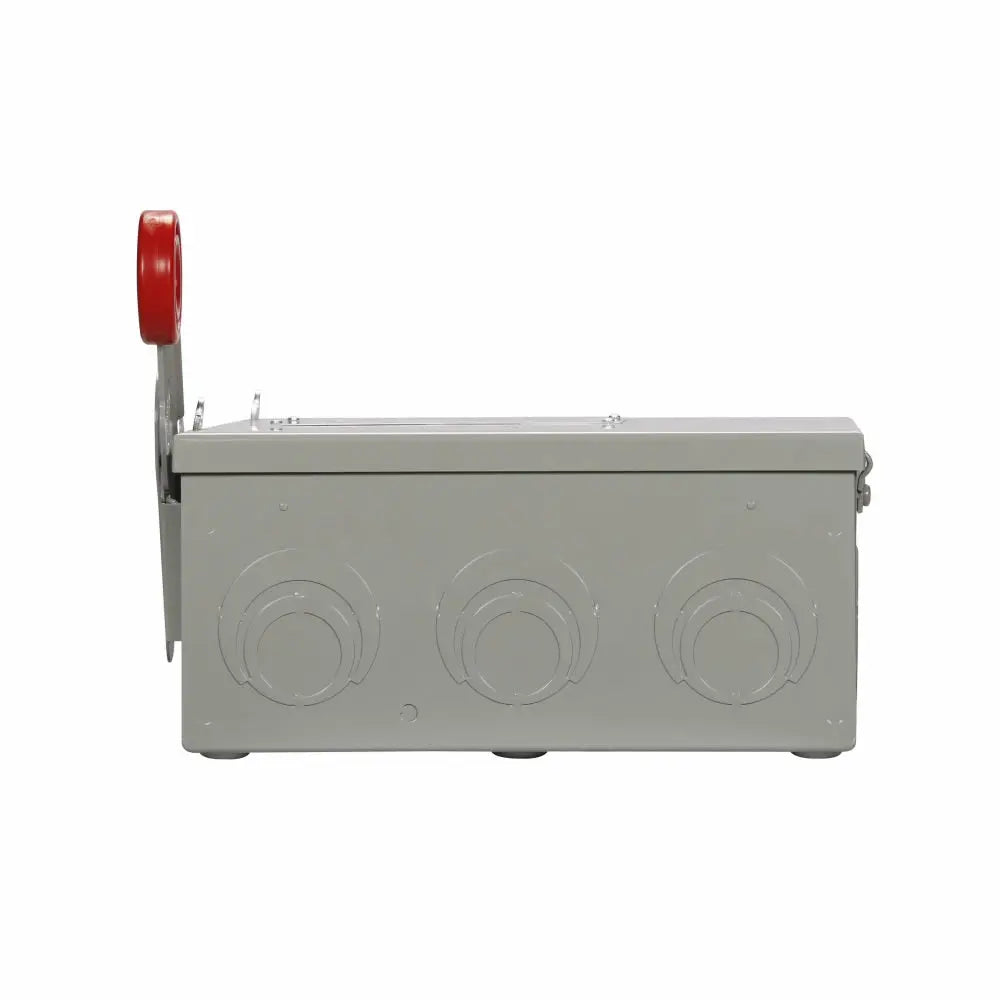

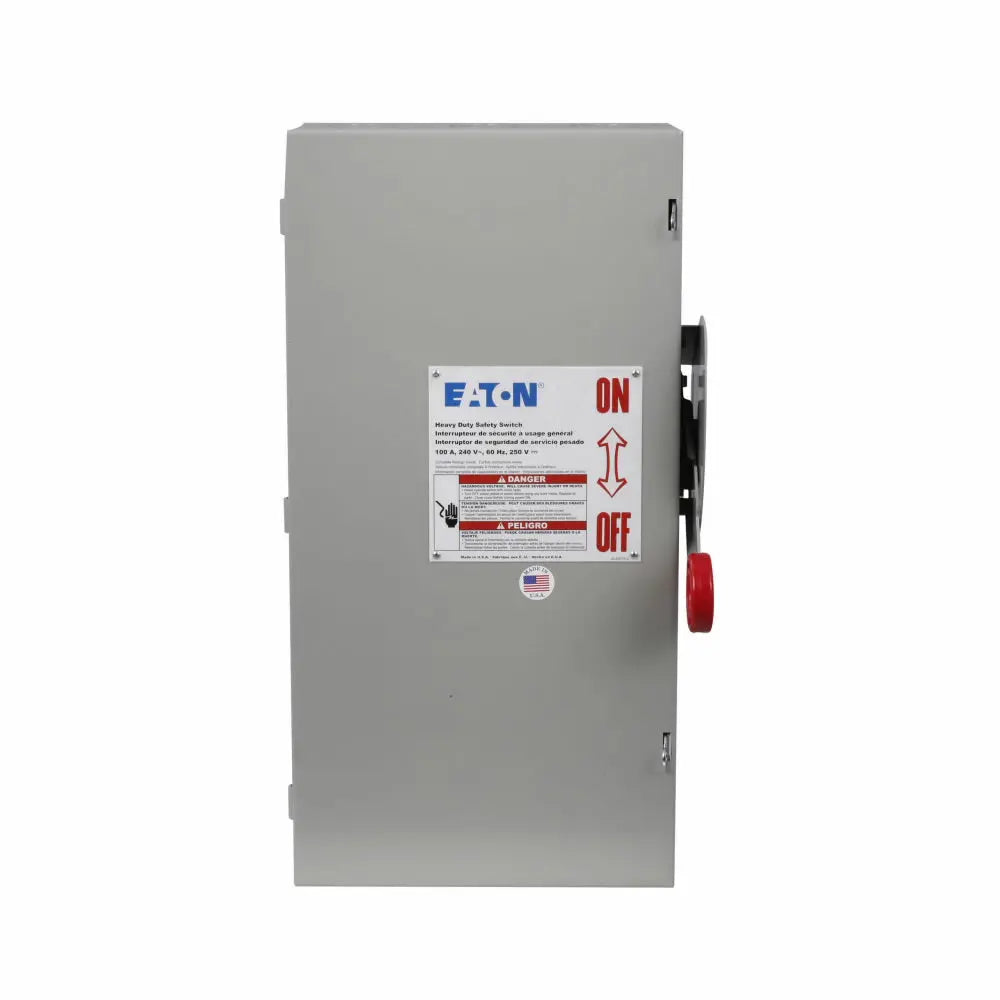

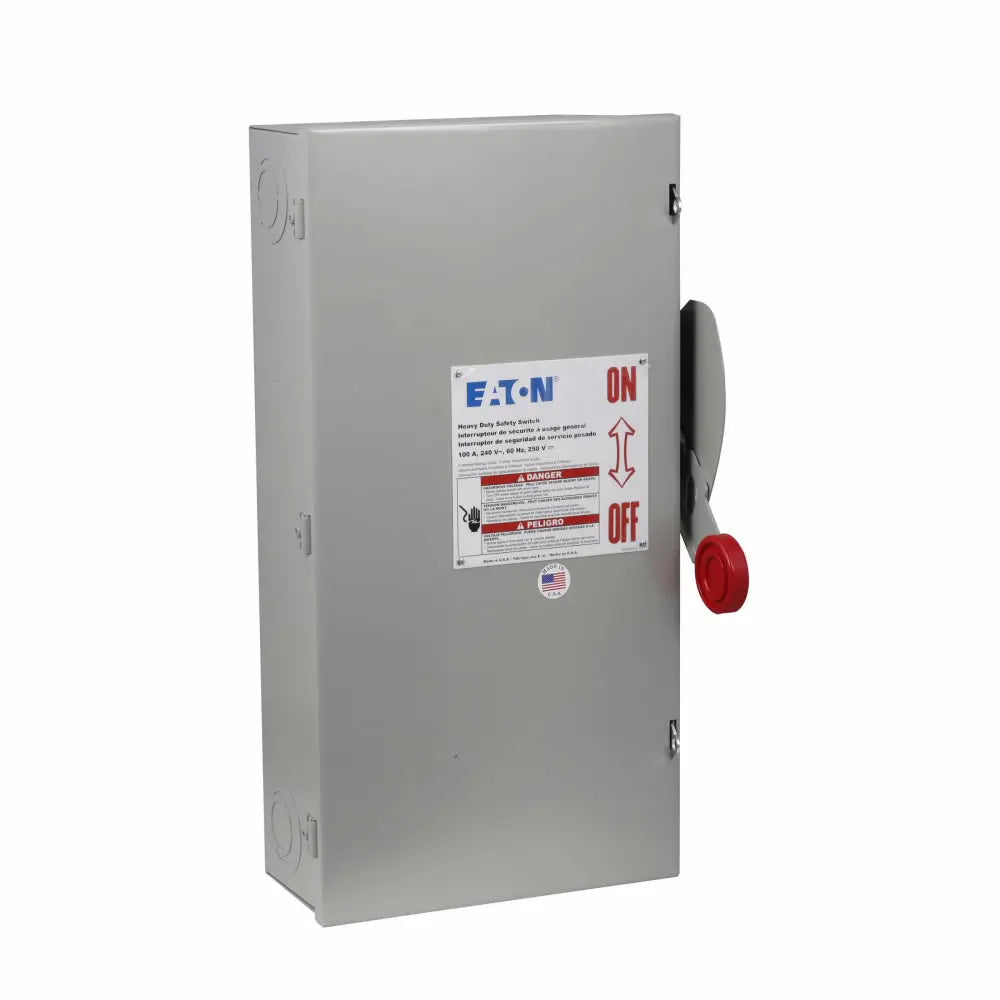

DH363UGK - 100A/3P HD NF Safety Switch 600V Nema 1

100A/3P HD NF Safety Switch 600V Nema 1
Safety Switch, 100 A, 600 V Ac, 3 Poles, 1/3 Phases, 3 Wires, Painted Steel (Enclosure) Material, Non Fusible, 11.13 In Overall Length, 10 In Overall Width, 21.69 In Overall Height, 22 LB

Eaton’s Heavy Duty Non-fusible Safety Switches provide a means to manually connect or disconnect the load from the source. The heavy duty non-fusible safety switch is available in a variety of enclosures including NEMA 1, 3R, 12, 4, and 4X. Switches are 100% load-break and 100% load-make rated and are suitable for service entrance use. Available from 30A to 1200A.

Key Features:

● Type: General Duty/Cartridge Fuse
● Amperage Rating: 400A
● Enclosure: NEMA 3R
● Enclosure Material: Painted galvanized steel
● Fuse Class Provision: Class H fuses
● Fuse Configuration: Fusible with neutral
● Number Of Poles: Three-pole
● Number Of Wires: Four-wire
● Product Category: General Duty Safety Switch
● Voltage Rating: 240V

Documents:

Specifications and datasheets
Eaton Specification Sheet - DH363UGK
