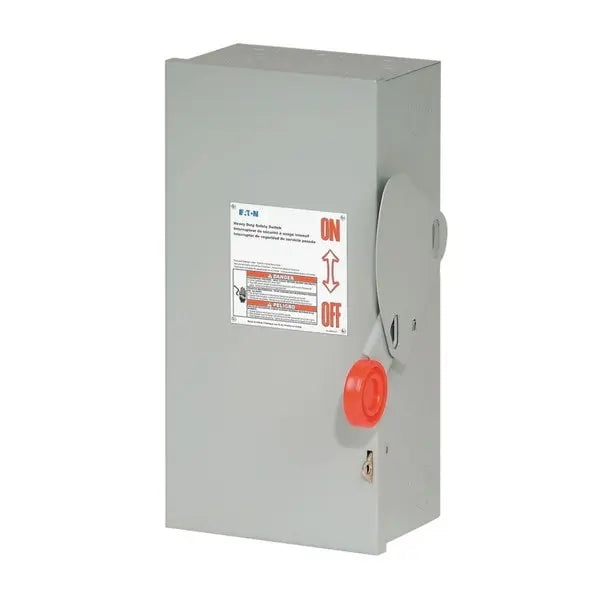

DH361NRK - Safety Switch

The Safety Switch is a highly durable and reliable electrical disconnect designed for industrial and commercial applications. Rated at 30A and compatible with 480 to 600V AC or 250V DC systems, this switch offers essential overcurrent protection. It features 3 poles and 4 wires, providing efficient circuit isolation and protection. The fusible design includes Class H fuses, ensuring safe operation under fault conditions. The enclosure is made from painted galvanized steel, offering both durability and corrosion resistance for long-lasting performance.

Key Features:

• Product Type: Safety Switch
• Amperage Rating: 30 A
• Voltage Rating: 480 to 600V AC, 250V DC
• Poles: 3 Poles
• Wires: 4 Wires
• Fuse Type: Class H Fuse (fusible design)
• Enclosure Material: Painted Galvanized Steel (corrosion-resistant)
• Dimensions:
• Length: 8.13 inches
• Width: 10 inches
• Height: 15.88 inches
• Weight: 20 lbs
• Application: Industrial and commercial overcurrent protection and circuit isolation
• Fusible: Yes (with Class H fuses)
• Certifications: UL Listed

The Safety Switch provides reliable protection for electrical circuits, offering both disconnection and overcurrent protection in one compact, durable unit.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH361NRK
