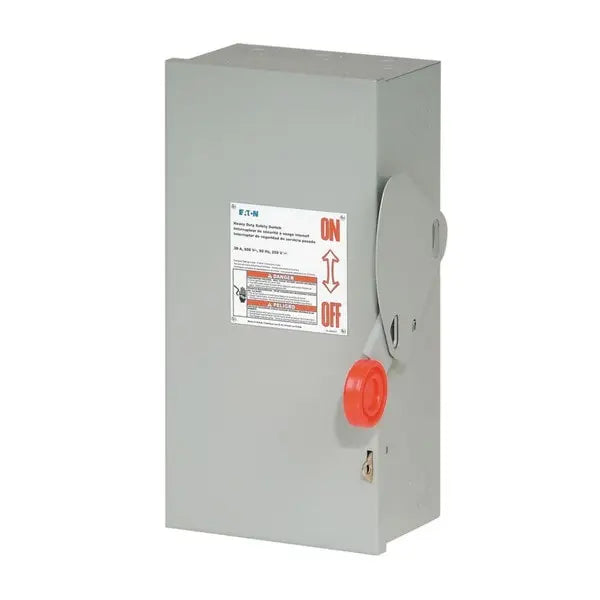

DH361NGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch is a reliable and durable solution for safely disconnecting electrical circuits. Designed with a 30A rating, this switch features a NEMA 1 enclosure made from painted steel, offering protection in indoor environments. Equipped with Class H fuses and a neutral, it provides fusible protection for three-pole, four-wire systems with a voltage rating of 600V. Capable of handling up to 7.5 HP, and with specific ratings for 10, 15, and 20 HP (1/3-phase at 480V and 600V), this switch ensures safe operation for various motor applications. It is compatible with 14-2 Cu/Al wire for versatility in wiring options.

Key Features:

• Accessory Type: Heavy Duty Single-Throw Fused Safety Switch
• Rating: 30A
• Enclosure: NEMA 1, painted steel for indoor use
• Fuses: Class H fuses with neutral for fusible protection
• Configuration: Three-pole, four-wire
• Voltage Rating: 600V
• Maximum Horsepower (HP):
• 7.5 HP
• 10/15/20 HP (1/3-phase @ 480V, 600V)
• Wire Compatibility: 14-2 Cu/Al wire
• Application: Suitable for motor protection and general circuit disconnection

This fused safety switch offers robust protection and secure disconnection for a wide range of electrical systems, ensuring safety and reliability in industrial and commercial applications.
