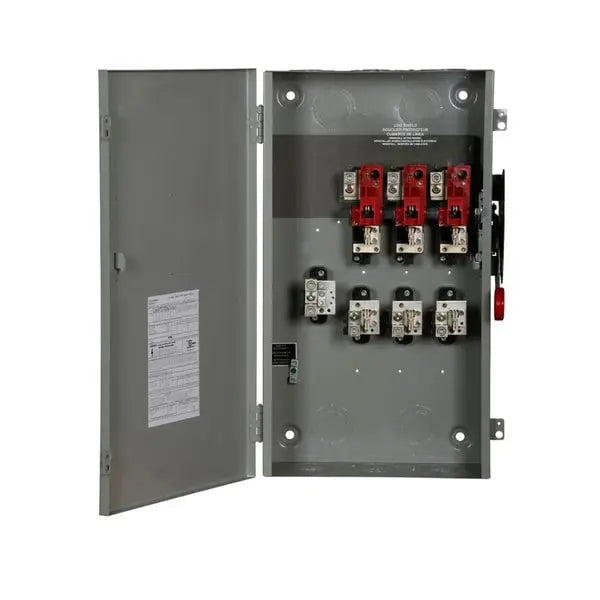

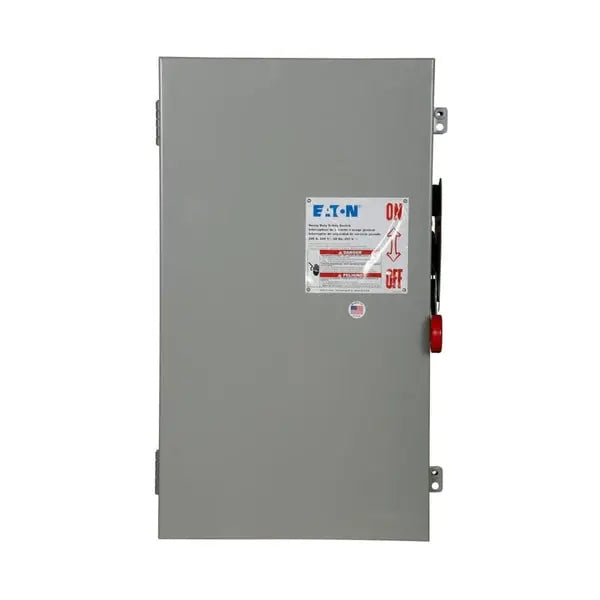

DH324NGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch is engineered for high-capacity power disconnection in industrial environments. With a 200 A rating and NEMA 1 painted steel enclosure, this switch offers reliable protection for systems up to 240 V. It features Class H fuses and supports a wide range of motor capacities, making it ideal for three-phase and single-phase applications.

Key Features:

• 200 A rating with 240 V AC capacity
• Three-pole, four-wire configuration with Class H fuses
• Painted steel enclosure, NEMA 1 rated for indoor use
• Supports up to 25 HP for 1-phase and 40 HP for 3-phase applications
• Compatible with 6–250 Kcmil Cu/Al wires

This Eaton Fused Safety Switch provides robust, safe operation in demanding industrial and commercial applications, ensuring efficient power isolation and protection.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH324NGK
