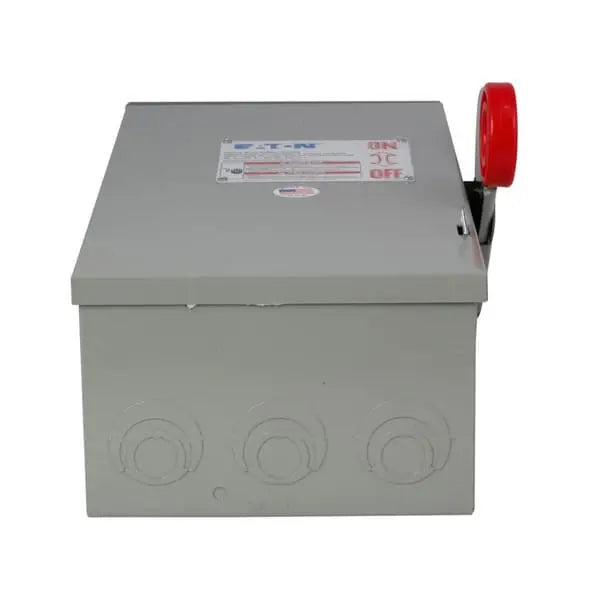

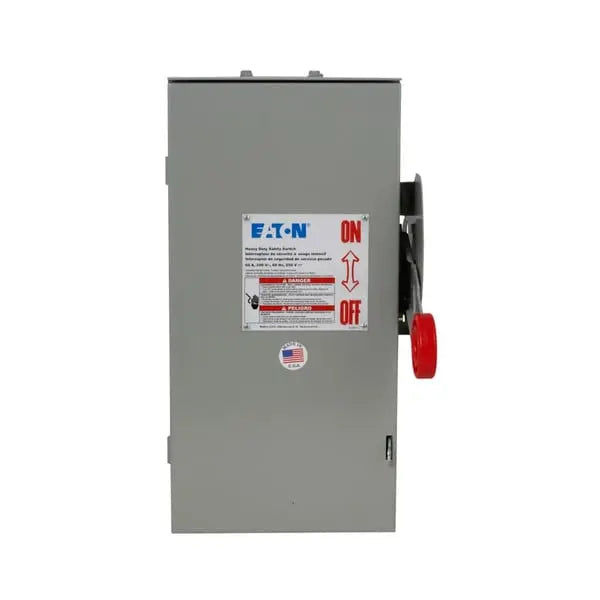

DH322NRK - Eaton Enhanced Visible Blade Single-Throw Safety Switch

The Eaton Enhanced Visible Blade Single-Throw Safety Switch offers safe and reliable disconnect capabilities for light-duty industrial and commercial applications. Rated at 60 amps and 240 volts, this switch is engineered for outdoor use, thanks to its rugged NEMA 3R painted galvanized steel enclosure.

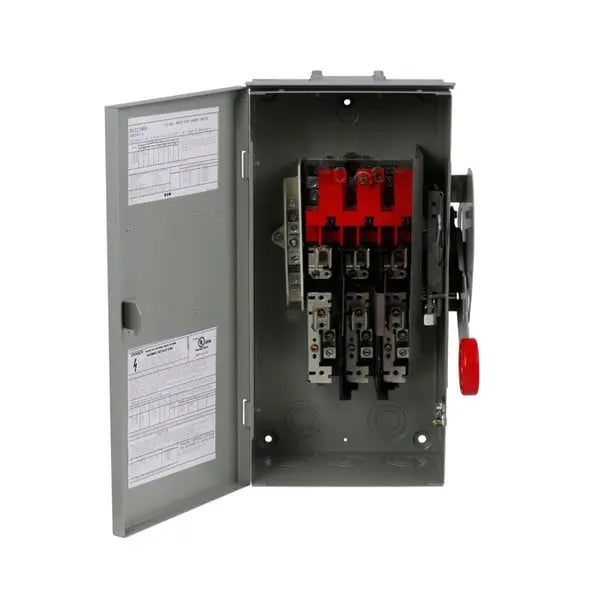

This fusible switch includes a neutral and supports Class H fuses, offering essential overcurrent protection. The visible blade design allows operators to clearly confirm the switch is in the open position, ensuring safe maintenance and operation. It's a three-pole, four-wire unit designed to accommodate various motor loads and DC circuits.

Key Features:

• Type: Enhanced Visible Blade Single-Throw Safety Switch
• Amperage Rating: 60 A
• Voltage Rating: 240 V
• Enclosure: NEMA 3R, painted galvanized steel for weather resistance
• Poles/Wires: Three-Pole, Four-Wire with Neutral
• Fuse Class: Class H, fusible for circuit protection
• Horsepower Ratings:
• 3 HP @ 1PH
• 7.5 HP (Standard), 10 HP (Time Delay) @ 3PH
• 15/10 HP @ 250 VDC
• Conductor Range: 14–2 AWG

With its enhanced safety features and robust construction, the Eaton 60A Safety Switch is a dependable choice for controlling power in demanding environments.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH322NRK
