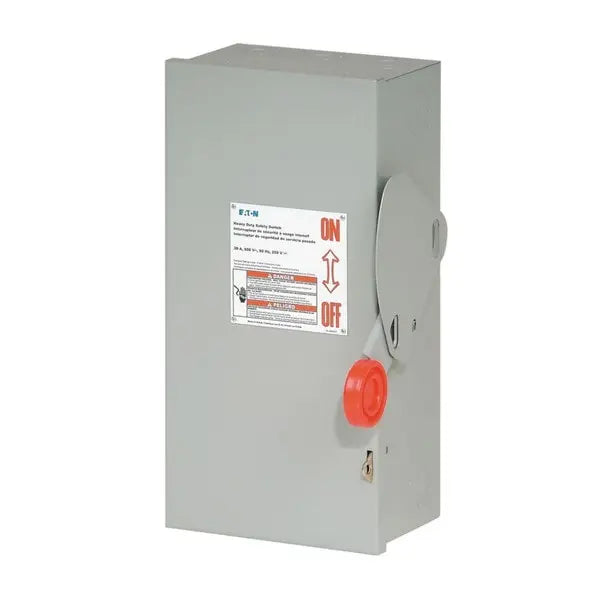

DH322NGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch is built to deliver reliable performance and safety in demanding electrical applications. Rated for 60A and 240V, this three-pole, four-wire switch is designed for heavy-duty industrial and commercial use. It features a fusible design with a Class H fuse configuration and includes a neutral for added versatility. Housed in a painted steel NEMA 1 enclosure, it offers durability for indoor environments. With horsepower ratings up to 15 HP, it supports both single-phase and three-phase loads, as well as 250V DC applications.

Key Features:

• Product Type: Heavy Duty Single-Throw Fused Safety Switch
• Amperage Rating: 60A
• Voltage Rating: 240V AC, 250V DC Max
• Poles/Wires: Three-Pole, Four-Wire
• Fusible Type: Class H, Fusible
• Neutral: Included
• Enclosure Type: NEMA 1, Painted Steel for indoor use
• Horsepower Rating:
• 1Ø: 3 HP (Standard), 7.5 HP (Time Delay)
• 3Ø: 10 HP (Standard), 15 HP (Time Delay)
• Wire Range: 14–2 AWG Cu/Al

This safety switch is engineered for dependable power control and protection, offering a robust solution for a variety of heavy-duty electrical systems and equipment.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH322NGK
