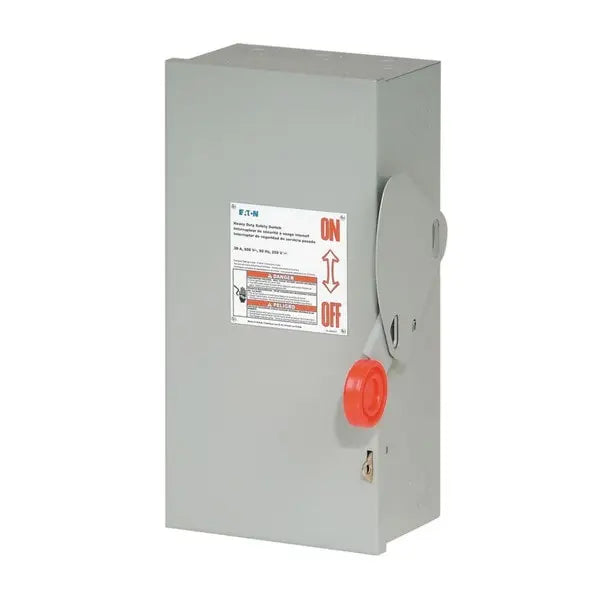

DH221NGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch with Enhanced Visible Blade is designed for safe and efficient electrical disconnection in indoor environments. Rated at 30 amps and 240 volts, this switch is housed in a durable NEMA 1 painted steel enclosure, making it ideal for general-purpose applications where reliability and safety are paramount.

The visible blade design allows operators to visually confirm the open position, ensuring maximum safety during maintenance. It features a Class H fusible configuration and includes a neutral for added versatility. This two-pole, three-wire switch is suitable for both single-phase and three-phase applications.

Key Features:

• Type: Heavy Duty Single-Throw Fused Safety Switch with Enhanced Visible Blade
• Amperage Rating: 30 A
• Voltage Rating: 240 V
• Enclosure: NEMA 1, painted steel for indoor use
• Poles/Wires: Two-Pole, Three-Wire with Neutral
• Fuse Class: Class H, fusible for reliable protection
• Horsepower Ratings:
  • 1.5 HP @ 1PH
  • 3 HP (Standard), 7.5 HP (Time Delay) @ 3PH
  • 3/5 HP @ 250 VDC
• Conductor Range: Compatible with various conductor sizes (consult specifications)

This Eaton Heavy Duty Safety Switch provides secure, visible disconnect capabilities and is an excellent choice for a wide range of indoor industrial and commercial applications.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH221NGK
