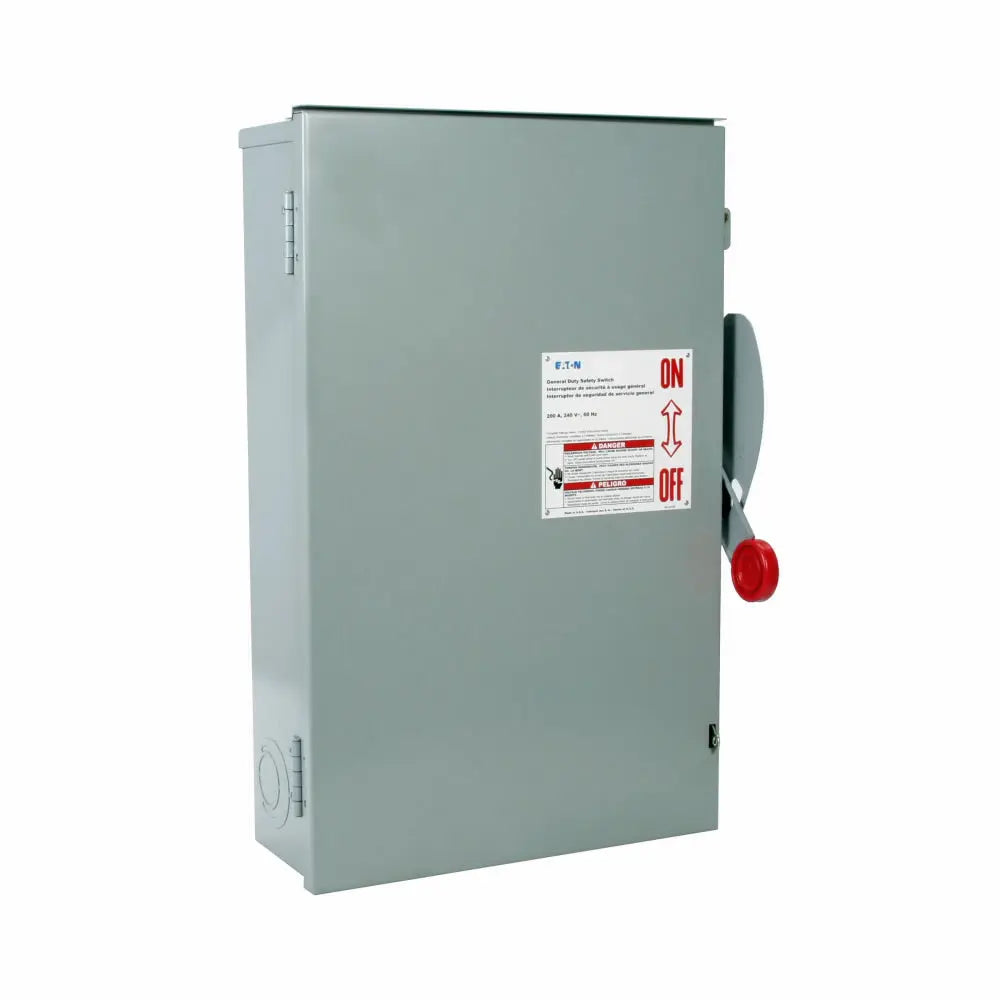

DG324NRK - 200A/3P GD Fusible Safety Switch W/Neut 240V Nema

200A/3P GD Fusible Safety Switch W/Neut 240V Nema
Safety Switch, 200 A, 240 V Ac, 3 Poles, 4 Wires, 4 W, Class H Fuse, Painted Galvanized Steel (Enclosure) Material, 16 In Overall Length, 11.25 In Overall Width, 25.5 In Overall Height, Fusible, 55 LB

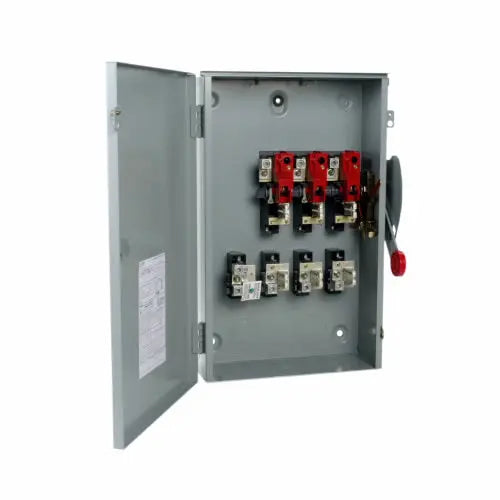

Eaton's general duty cartridge fuse safety switches offer premium function and safety features. They have ample wiring space, visible double break rotary blade mechanisms, a side opening door on all enclosures, interlocking mechanism to prevent easy access when the switch is in the ON position, and clearly visible ON/OFF indication. With class H or R fuses, they can be used on systems capable of delivering 10,000 or 100,000 amperes rms symmetrical, respectively.

Key Features:

● Type: General Duty/Cartridge Fuse
● Amperage Rating: 200A
● Enclosure: NEMA 3R
● Enclosure Material: Painted galvanized steel
● Fuse Class Provision: Class H fuses
● Fuse Configuration: Fusible with neutral
● Number Of Poles: Three-pole
● Number Of Wires: Four-wire
● Product Category: General Duty Safety Switch
● Voltage Rating: 240V

Documents:

Specifications and datasheets
Eaton Specification Sheet - DG324NRK
