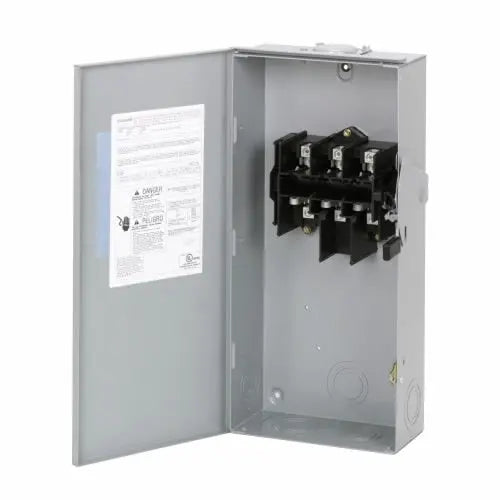

DG323URB - 100A/3P GD NF Safety Switch 240V Nema 3R

100A/3P GD NF Safety Switch 240V Nema 3R
Safety Switch, 100 A, 240 V Ac, 3 Poles, 3 Phases, 3 Wires, 30 HP, 3NO Switch Configuration, Painted Galvanized Steel (Enclosure) Material, Non Fusible, 9.13 In Overall Length, 11.25 In Overall Width, 19.25 In Overall Height, 12 LB

Eaton's General Duty Non-fusible Safety Switches provide a means to manually connect or disconnect the load from the source. They are available in NEMA 1 general purpose or NEMA 3R rainproof enclosures and are suitable for service entrance applications. Switches are load break rated.

Key Features:

● Type: General Duty/Non-Fusible
● Amperage Rating: 100A
● Enclosure: NEMA 3R
● Enclosure Material: Painted galvanized steel
● Fuse Configuration: Non-fusible
● Number Of Poles: Three-pole
● Number Of Wires: Three-wire
● Product Category: General Duty Safety Switch
● Voltage Rating: 240V

Documents:

Specifications and datasheets
Eaton Specification Sheet - DG323URB
