DG321NGB - 30A/3P GD Fusible Safety Switch W/Neut 240V Nema 1
-
Estimated Delivery:May 31 - Jun 04
-
Free Shipping & Returns: On all orders under $50

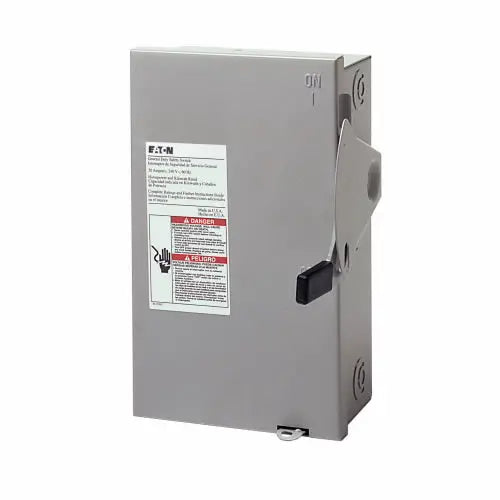

DG321NGB - 30A/3P GD Fusible Safety Switch W/Neut 240V Nema 1
30A/3P GD Fusible Safety Switch W/Neut 240V Nema 1
Safety Switch, 30 A, 240 V Ac, 3 Poles, 4 Wires, 4 W, Class H Fuse, Painted Steel (Enclosure) Material, 6.38 In Overall Length, 6.88 In Overall Width, 10.69 In Overall Height, Fusible, 6 LB
Eaton's general duty cartridge fuse safety switches offer premium function and safety features. They have ample wiring space, visible double break rotary blade mechanisms, a side opening door on all enclosures, interlocking mechanism to prevent easy access when the switch is in the ON position, and clearly visible ON/OFF indication. With class H or R fuses, they can be used on systems capable of delivering 10,000 or 100,000 amperes rms symmetrical, respectively.
Key Features:
Application: Power Distribution
Standard: UL Listed,NEC 230.62 (C) Compliant Barrier
Documents:
Specifications and datasheets
Eaton Specification Sheet - DG321NGB
