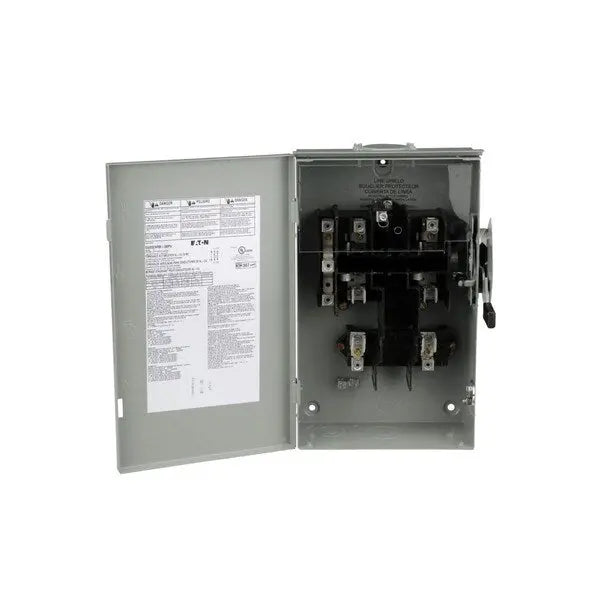

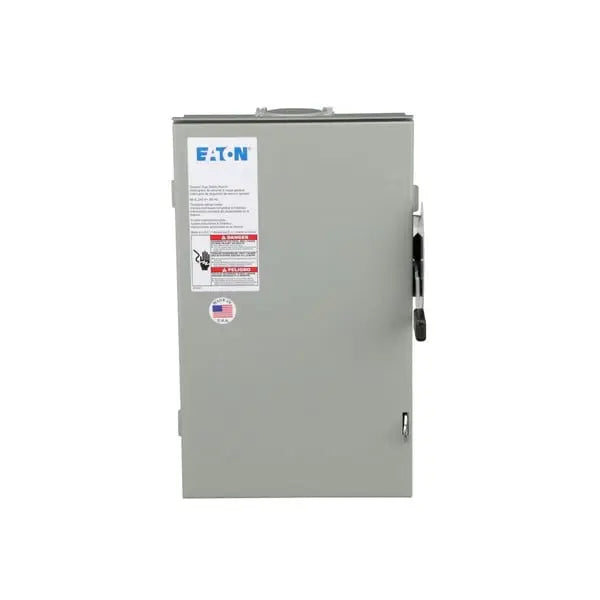

DG223NRB-00PV - Eaton General Duty Cartridge Fuse Safety Switch

The Eaton General Duty Cartridge Fuse Safety Switch is a rugged and reliable switching solution ideal for residential, agricultural, and light commercial applications, including photovoltaic (PV) systems. Rated at 100 amps and 240V, this 2-pole, 3-wire safety switch is fusible with neutral and supports Class H fuses for dependable overcurrent protection. Housed in a NEMA 3R enclosure made of painted galvanized steel, it is suitable for outdoor use, offering resistance to weather and corrosion. For added safety and convenience, it includes a factory-installed line shield and a solid neutral.

Key Features:

• Product Type: General Duty Cartridge Fuse Safety Switch
• Amperage Rating: 100 A
• Voltage Rating: 240 V
• Enclosure Type: NEMA 3R (Outdoor Rated)
• Material: Painted Galvanized Steel
• Fuse Type: Class H Fuses
• Configuration: 2 Pole, 3 Wire
• Neutral: Fusible with Solid Neutral Included
• Application: Ideal for PV (Photovoltaic) Applications
• Additional Features: Factory Installed Line Shield

The Eaton General Duty Cartridge Fuse Safety Switch provides a cost-effective and safe disconnecting means for a wide variety of electrical installations, particularly where reliable weather-resistant performance and code compliance are required.
