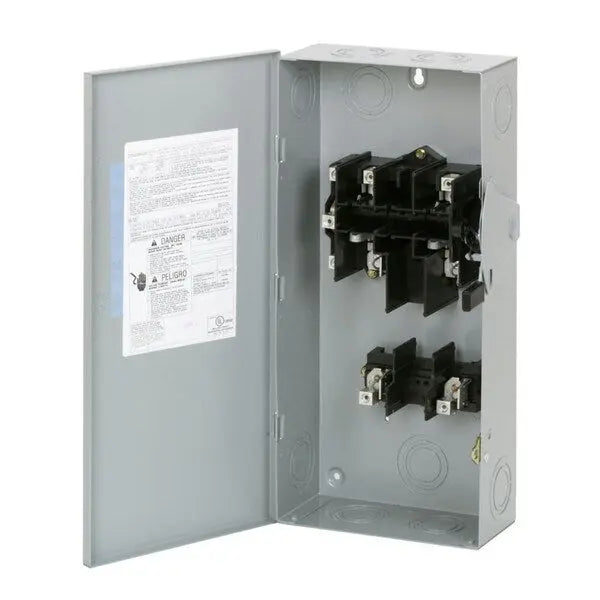

DG223NGB - Eaton General Duty Cartridge Fuse Safety Switch

The Eaton General Duty Cartridge Fuse Safety Switch is designed to provide secure and reliable protection for electrical circuits. With a 100A rating and a 240V capacity, it ensures the safety and smooth operation of your electrical systems. This fusible switch is equipped with Class H fuses and includes a neutral, making it ideal for general-duty applications. Its NEMA 1-rated painted steel enclosure ensures durability and protection in indoor environments. The switch features a two-pole, three-wire configuration for enhanced functionality and flexibility in a variety of applications.

Key Features:

• 100A rating for reliable circuit protection
• NEMA 1-rated painted steel enclosure
• Class H fuses for superior protection
• Fusible design with neutral for safety
• Two-pole, three-wire configuration
• Rated for 240V AC applications
• Category: General Duty Safety Switch

This Eaton General Duty Cartridge Fuse Safety Switch provides a robust solution for protecting circuits in residential and light industrial applications, ensuring safe and efficient operation of electrical systems.

Documents:

Catalogs

Commercial Distribution, Switching Devices, Volume 2, Tab 1
Multimedia

Double Up on Safety

Switching Devices Flex Center
Specifications and datasheets

Eaton Specification Sheet - DG223NGB
