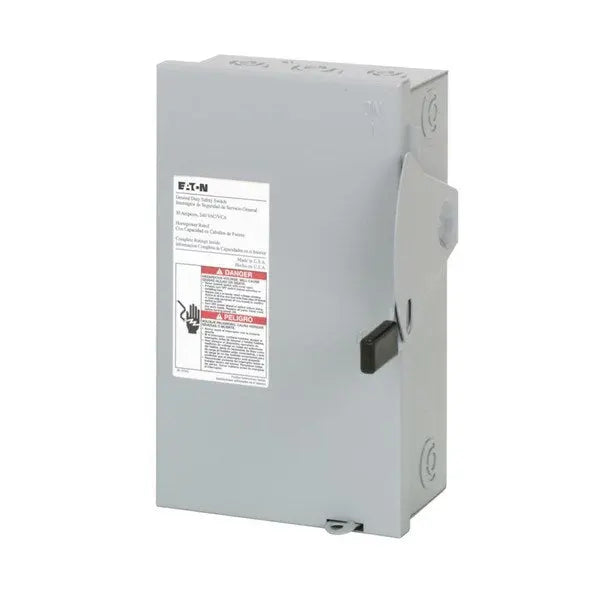

DG221NGB - Safety Switch

The Eaton Safety Switch is designed to provide reliable and secure disconnection for electrical circuits. With a 30A rating and 240V AC operation, it is ideal for controlling electrical equipment in residential or commercial applications. This switch features two poles, three wires, and a Class H fuse for additional protection. The fusible design ensures enhanced safety by disconnecting the power in case of a fault. The switch is housed in a painted steel enclosure, providing durability and resistance to harsh environments. It has overall dimensions of 6.38 inches in length, 6.88 inches in width, and 10.69 inches in height, weighing 6 lbs.

Key Features:

• 30A rating, 240V AC operation
• Two poles and three wires for efficient operation
• Class H fuse for enhanced protection
• Fusible design for added safety
• Painted steel enclosure for durability
• Overall dimensions: 6.38" length, 6.88" width, 10.69" height
• Weighs 6 lbs

This Eaton Safety Switch ensures safe and reliable circuit disconnection, making it an excellent choice for electrical control needs.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Multimedia
Double Up on Safety
Switching Devices Flex Center

Specifications and datasheets
Eaton Specification Sheet - DG221NGB
