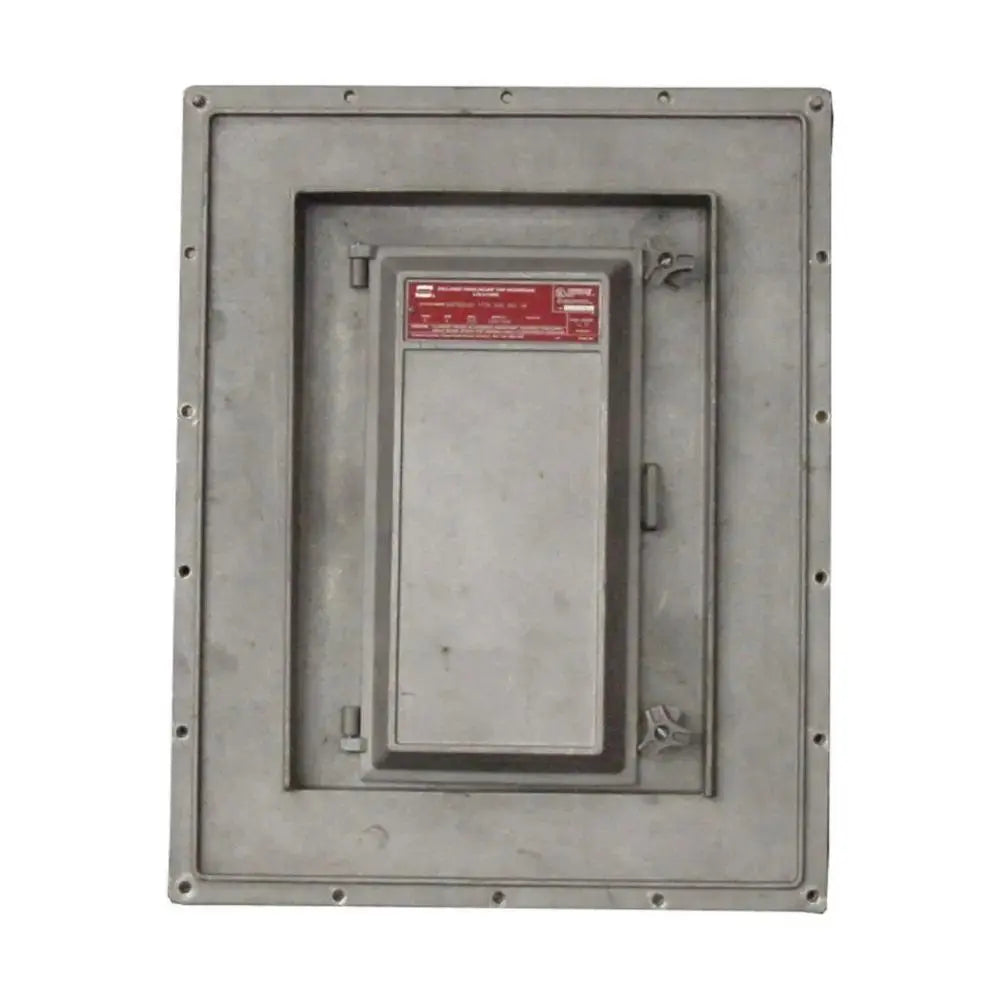

D2PB1402 20 302 30 2M60 - Panel Board

A Panel Board is an essential component in electrical systems, designed to house circuit breakers, fuses, and other protective devices that control and distribute electrical power throughout a building or facility. Panel boards are widely used in residential, commercial, and industrial applications, offering a centralized point for electrical distribution and protection.

The panel board ensures that electrical circuits are properly protected against overloads, short circuits, and other electrical faults, improving the safety and reliability of the entire electrical system. Available in a variety of sizes and configurations, panel boards can be customized to suit specific requirements, whether for standard residential setups or more complex industrial systems.

Key Features:

• Circuit Protection: Houses circuit breakers or fuses to protect individual circuits from overloads and short circuits
• Design: Available in a range of sizes, including single-phase and three-phase configurations, to suit various applications
• Material: Constructed from durable, high-quality materials for long-lasting performance and safety
• Safety Standards: Meets industry standards such as UL (Underwriters Laboratories) for safe electrical operation
• Ease of Installation: Designed for easy installation and maintenance, with clear labeling and access points for quick troubleshooting
• Customization: Can be tailored with additional features such as surge protection, metering, and more, depending on your needs

The Panel Board is a critical element in maintaining safe and efficient power distribution in electrical systems, ensuring that electricity is distributed where it's needed while providing necessary protection for electrical components.

Documents:

EES Spec Sheet

MFR Spec Sheet
