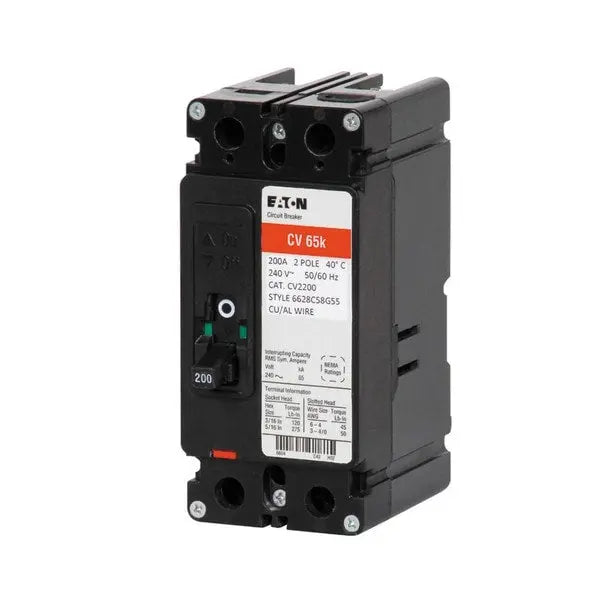

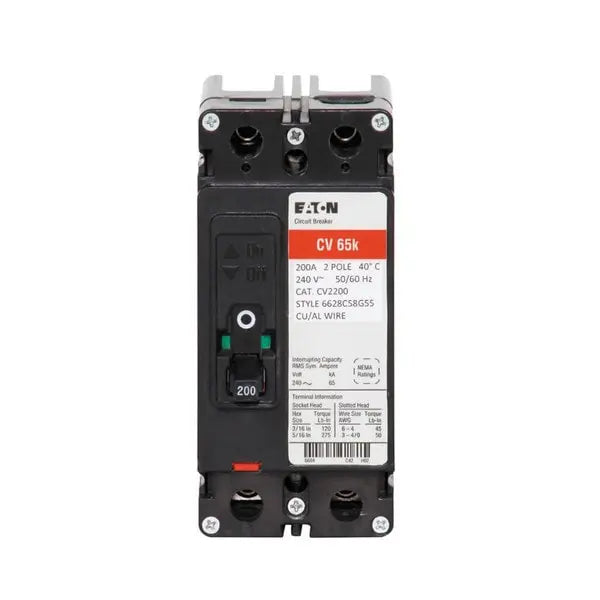

CV2150XMM - Eaton Type CV Molded Case Circuit Breaker

The Eaton Type CV Molded Case Circuit Breaker is engineered to deliver robust protection against overcurrent conditions in industrial and commercial electrical systems. With a 150A rating and a 65 kAIC interrupting capacity, this two-pole breaker ensures superior performance in demanding environments. Rated for 120/240V, it accommodates up to 4/0 Kcmil wiring (both aluminum and copper) and offers a maximum load of 4/0 Kcmil. The Type CV breaker is designed for easy installation, and the included mounting kit ensures a secure setup.

Key Features:

• Product Type: Type CV Molded Case Circuit Breaker
• Amperage Rating: 150A
• Interrupting Capacity: 65 kAIC
• Poles: Two-Pole
• Voltage Rating: 120/240V
• Wire Range: 6 - 4/0 AWG Aluminum/Copper
• Maximum Load: 4/0 Kcmil
• Includes: Mounting Kit for easy installation
• Application: Ideal for industrial and commercial systems requiring high interrupting capacity and reliable overcurrent protection

This molded case circuit breaker is a dependable choice for maintaining electrical system safety and efficiency, providing peace of mind in high-demand applications.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - CV2150XMM
