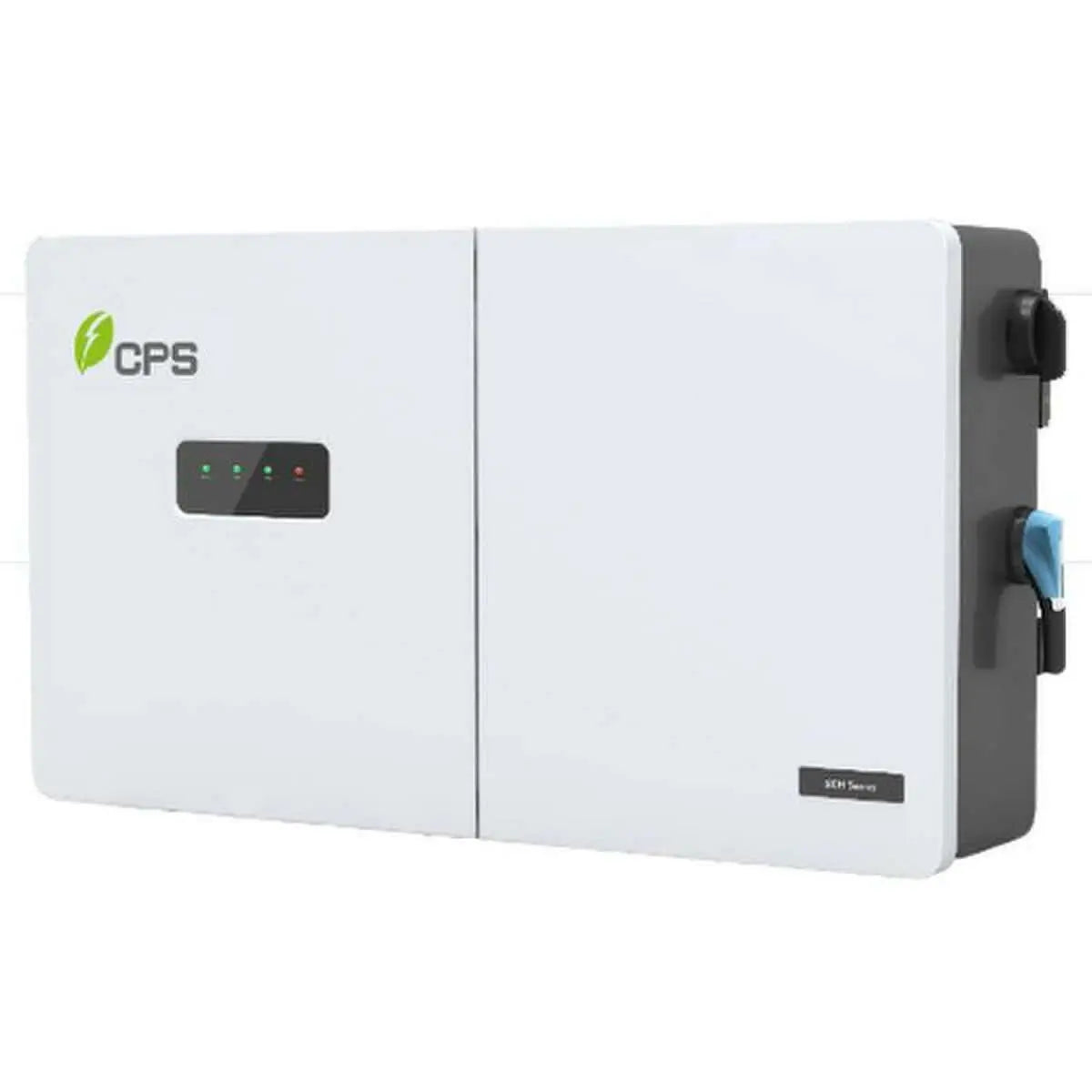

CPS SCH100KTL-DO/US-480-D, 100kW 3Phase String Inverter

Explore the Features of the 100kW Inverter

The 100kW high power CPS three phase string inverters are designed for ground mount applications with 480Vac service voltage. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiencies, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 100kW products ship with the Standard or Centralized Wire-box, each fully integrated and separable with AC and DC disconnect switches. The Standard Wire-box includes touch safe fusing for up to 20 strings. The CPS FlexOM Gateway enables communication, controls and remote product upgrades.

Features

• • 480V AC output
  • Separable wire-box design for fast service
  • AC connections AL/CU compatible
  • 1500Vdc enabling further BoS savings
  • Generous DC/AC Inverter Load Ratios

  High Efficiency and Reliability

  • Maximum efficiency of 98.7%
  • 20 inputs for maximum flexibility
  • Transformerless design
  • Standard warranty: 5 years, extension up to 20 years
  • Advanced thermal design with active cooling enables true full power across broad temp range
  • Ground-fault detection and interruption circuit

  Broad Adaptability and Flexibility

  • NEMA Type 4X (IP66)
  • Utility interactive controls: Active power derating, reactive power control
  • Integrated DC, AC disconnects
  • Wide MPPT range for flexible string sizing
  • Fully integrated and separable wire-box options (standard or centralized)
  • CPS Flex Gateway enables monitoring, controls, remote product upgrades and fleet commissioning
  • CPS Connect Pro App allows the commissioning of the inverters by smart phone/laptop

Documents

• Specification Sheet


High Efficiency Rating

The CPS SCH100KTL-DO is designed to offer high efficiency, reaching up to 98.4%. This means that more energy from your solar panels is converted into usable electricity. However, it doesn't just stop at efficiency; it also has advanced thermal management that prevents overheating, ensuring reliable performance over time. This makes it an excellent choice for both residential and commercial solar setups.

Versatile Design

This 100kW inverter is adaptable and can handle various system sizes, making it ideal for different installation needs. It supports multiple configurations, including three-phase connections, and is compatible with a wide range of solar panel types. So, whether you're looking to power a small business or a large facility, this inverter offers flexibility and robust performance. Because of its compact design, it can easily be integrated into existing infrastructures without requiring much additional space.

Smart Monitoring Capabilities

Equipped with smart monitoring features, the CPS SCH100KTL-DO allows users to track energy production in real-time. This capability is vital for optimizing energy use and ensuring that the system is performing efficiently. Additionally, the inverter is compatible with various monitoring platforms, offering easy access to data via smartphones or computers. Therefore, you can monitor your solar system anytime, anywhere, giving you peace of mind about your energy investment.
