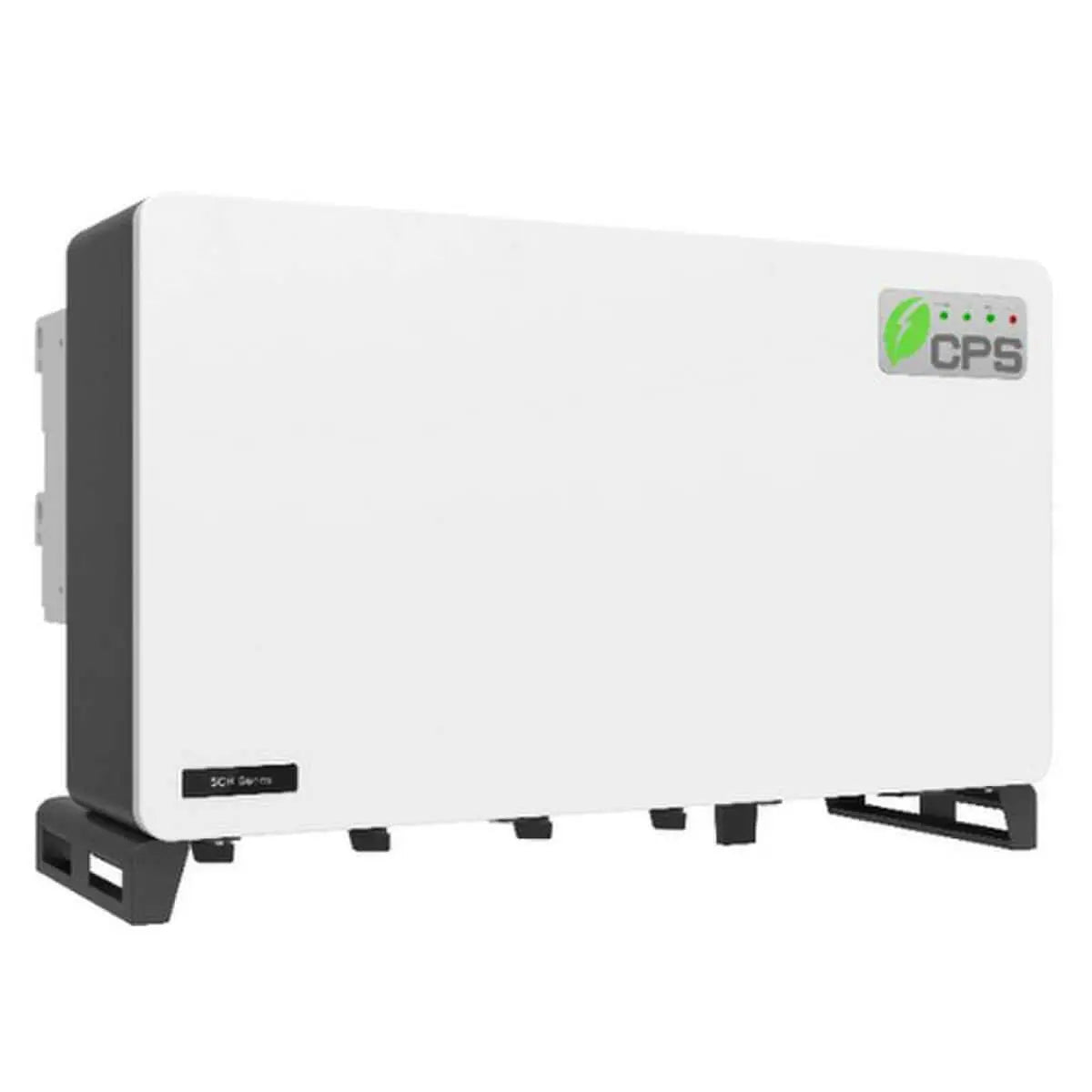

CPS Chint SCH275KTL-DO/US-800 275kW 3Phase String Inverter, 1500VDC, 12 MPPT, 800Vac (Specify 24 or 36 input)

CPS Chint Inverter: Efficiency and Innovation

The 250/275kW high power CPS three phase string inverters are designed for ground mount applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiencies, wide operating voltages, broad temperature ranges and NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The SCH275KTL inverters include 12 MPPTs and are available with either 36 fused PV string inputs or 24 unfused PV string inputs. The CPS FlexOM solution enables communication, controls and remote product upgrades.

Features

• • Full power capacity up to 42C
  • 12 MPPTs with 36 fused inputs or 24 unfused inputs
  • AC connections AL/CU compatible
  • Touch safe DC fuse holders
  • NEMA Type 4X outdoor rated, tough tested enclosure
  • CPS 250/275kW V1 Datasheet | Download
  • CPS 250/275kW V2 Datasheet | Download
  • CPS 250/275kW V1 User Manual | Download
  • CPS 250/275kW Characteristic Curves | Download
  • CPS 250/275kW Ride-Through Protection | Download
  • NRTL TUV CPS SCH275KTL UL CERT | Download
  • OND CPS SCH275KTL-DO-US-800 250kW (24-inputs) | Download
  • OND CPS SCH275KTL-DO-US-800 250kW (36-inputs) | Download
  • OND CPS SCH275KTL-DO-US-800 275kW (24-inputs) | Download
  • OND CPS SCH275KTL-DO-US-800 275kW (36-inputs) | Download
  • Using CPS Inverters with PVSYST | Download

  High Efficiency and Reliability

  • Maximum efficiency of 99%, CEC efficiency of 98.5%
  • 36 fused inputs or 24 unfused inputs for maximum flexibility
  • Transformerless design
  • Standard warranty: 5 years, extension up to 20 years
  • Advanced thermal design with active cooling enables true full power across broad temp range
  • Ground-fault detection and interruption circuit

  Broad Adaptability and Flexibility

  • NEMA Type 4X enclosure
  • Utility interactive controls: Active power derating, reactive power control
  • Integrated DC disconnects
  • Wide MPPT range for flexible string sizing
  • CPS Flex Gateway enables monitoring, controls, remote product upgrades and fleet commissioning
  • CPS Connect Pro App allows the commissioning of the inverters by smart phone/laptop

Documents

• Owners/User Manual
• Specification Sheet

Powerful Performance with 275kW Capacity

The CPS Chint inverter stands out with its impressive 275kW capacity. This power inverter is specifically designed for large solar energy systems. It efficiently converts high voltage direct current (1500VDC) into usable alternating current (AC) with an output voltage of up to 800Vac. Therefore, it maximizes energy generation from solar panels, making it a top choice for those seeking reliability and efficiency.

Advanced Multi-Tracking Technology

Featuring 12 MPPT (Maximum Power Point Tracking) inputs, the CPS Chint inverter excels in optimizing power output from each individual solar panel. This technology is essential because it allows the inverter to adjust to varying sunlight conditions and panel orientations. As a result, you achieve better energy harvest throughout the day, regardless of changing weather conditions.

User-Friendly Installation Options

The CPS Chint inverter is designed with flexibility in mind. You can specify either 24 or 36 inputs, which enables easy integration into diverse system configurations. This versatility is crucial because it accommodates both small residential installations and larger commercial setups. Furthermore, the unit's user-friendly design simplifies installation and maintenance processes, ensuring a seamless experience for users.
