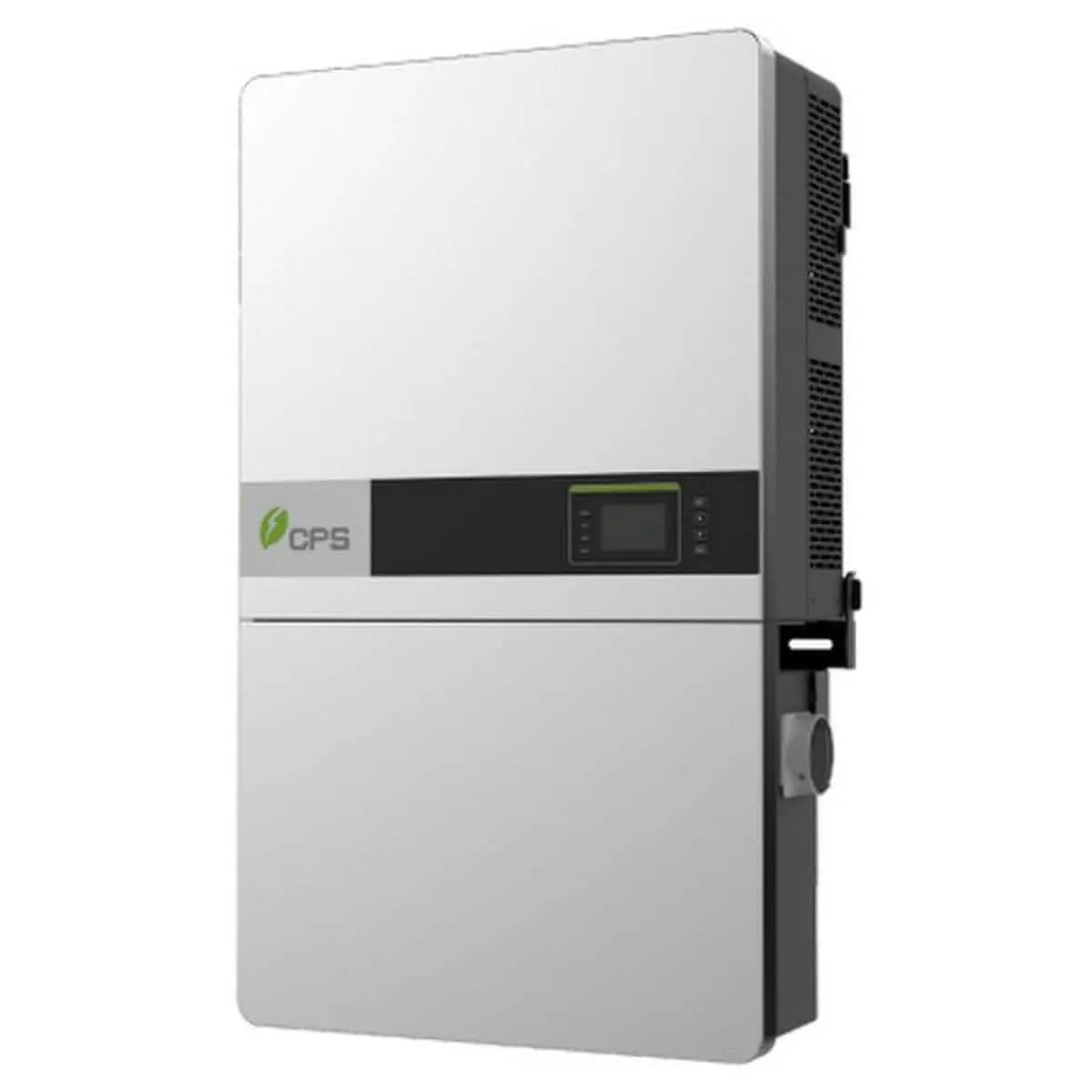

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox

Chint String Inverter: Reliable 36kW 3-Phase Solar Power Conversion

The new, V2 version of the 36kW (36kVA) CPS three-phase string inverter is designed for rooftop and carport applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.8% peak and 97.4% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications.

CPS 36KTL V2 ships with either the Standard wire-box or the Rapid Shutdown wire-box, each fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown Wire-box enables PVRSS certified module-level rapid shutdown when used with APS RSD-S-PLC/RSD-D products. The CPS FlexOM Gateway enables monitoring, controls and remote product upgrades.

Features

• NEC 2017/2020 PVRSS certified for rapid shutdown
• NEC-compliant & UL listed arc-fault circuit protection
• 15-90 mounting orientation for low-profile roof installs
• Optional FlexOM Gateway enables remote firmware upgrades
• Integrated AC & DC disconnect switches
• Copper- and Aluminum-compatible AC connections
• 3 MPPTs with 5 inputs each for maximum flexibility
• NEMA Type 4X outdoor rated enclosure
• UL 1741-SA certified to CA Rule 21, including SA8-SA18 VW
• UL 1741-SB and IEEE 1547-2018 certified
• Separable wire-box design for fast service
• Standard 10-year warranty with extensions up to 20 years
• CPS 36kW V2 Datasheet | Download
• CPS 36kW V2 User Manual | Download
• NRTL CSA CPS SCA 36KTL V2 UL Certification | Download
• NOND file for 36kW V2 | Download


Documents

• Specification Sheet

Advanced Performance of the Chint String Inverter

The Chint string inverter delivers outstanding performance with its 36kW power capacity, designed specifically for 3-phase 480VAC solar systems. Its high voltage rating of 1000VDC ensures efficient and stable operation under various conditions. Optimized for commercial and industrial photovoltaic installations, this inverter maximizes energy harvest while minimizing losses. Equipped with the APS RSD Wirebox, it simplifies wiring and enhances system safety. The inverter supports reliable energy conversion, making it a trusted choice for sustainable power needs.

Enhanced Safety and Connectivity Features

Safety is a crucial aspect of the Chint string inverter design, incorporating built-in protections including overvoltage, undervoltage, and short circuit safeguards. The APS RSD Wirebox streamlines installation, offering organized cable management and secure electrical connections. This feature reduces the risks of faults and improves maintenance accessibility. Additionally, the inverter supports comprehensive monitoring, allowing users to track system performance in real time. These safety and connectivity enhancements ensure long-term system reliability.

Durability and Applications of the Chint String Inverter

Built with robust components, the Chint string inverter withstands harsh environmental conditions while maintaining consistent output. Its IP65 rating protects against dust and water ingress, making it suitable for outdoor installation. This inverter is ideal for commercial rooftop and ground-mounted solar projects where efficiency and reliability are paramount. The compact design combined with advanced technology ensures easy integration within existing solar arrays, helping businesses optimize renewable energy use effectively.
