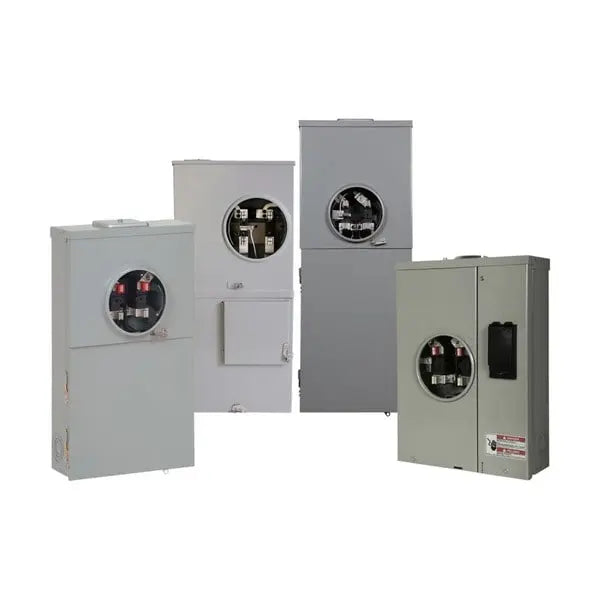

CMB48B200BTSG - Eaton Residential Meter Breaker

The Eaton Residential Meter Breaker combines metering and main breaker functions in a compact, all-in-one design, ideal for residential applications. Rated for 200 amps and 120/240V single-phase systems, this unit features a durable copper bus and is built to NEMA 3R standards for outdoor use. It includes a ringless design with a four-jaw meter socket, compatible with Georgia Power utility requirements. The unit supports both bottom and top feed, has a 22 kAIC interrupt rating, and accommodates wire sizes ranging from 6 AWG to 350 KCMIL. Designed for surface mounting, this versatile meter breaker ensures easy installation and reliable performance.

Key Features:

• Product Type: Residential Meter Breaker (All-In-Ones)
• Amperage Rating: 200 Amps
• Voltage Rating: 120/240V AC, Single-Phase
• Bus Material: Copper
• Enclosure Rating: NEMA 3R (Outdoor Rated)
• Meter Socket Type: Ringless, Four-Jaw
• Interrupt Rating: 22 kAIC
• Feed Type: Bottom and Top Feed
• Wire Size Range: 6 AWG to 350 KCMIL
• Mounting Type: Surface Mount
• Utility Compatibility: Georgia Power
• Application: Residential metering and main breaker combined

The Eaton Residential Meter Breaker offers a space-saving, efficient, and utility-compliant solution for residential electrical installations.

Documents:

Application notes
Eaton Specification Sheet - CMB48B200BTSG

Brochures
Eaton Emergency Disconnect Options at a Glance
