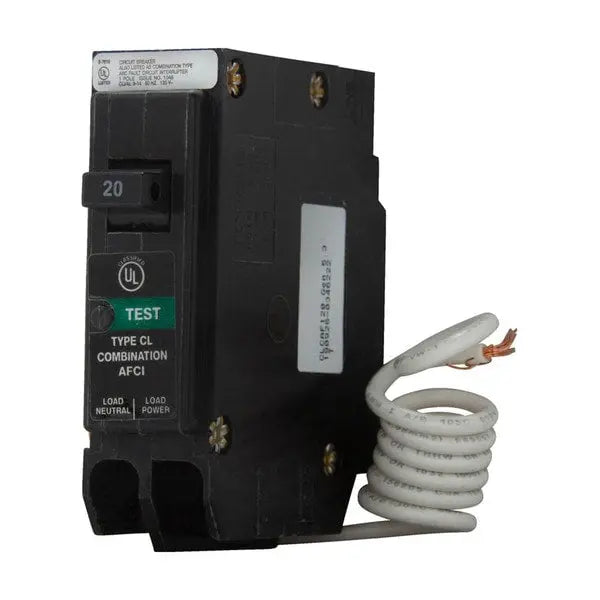

CLCAF120 - Eaton Classified 1" Afci Circuit Breaker

The Eaton Classified 1" AFCI Combination Circuit Breaker provides advanced protection against arc faults, helping to reduce the risk of electrical fires in residential applications. Designed for use in single-pole, 120V circuits, this breaker offers 20 Amp protection and a high interrupting capacity of 10 kAIC. Its 1-inch frame is compatible with a variety of loadcenters, making it a versatile choice for both new installations and panel retrofits.

Key Features:

• Product Type: AFCI Combination Circuit Breaker
• Amperage Rating: 20 Amps
• Pole Configuration: Single-Pole
• Interrupting Rating: 10,000 AIC (10 kAIC)
• Voltage Rating: 120 Vac
• Frame Size: 1 inch (classified for use in multiple panel brands)
• Protection Type: Combination Arc Fault (AFCI) – protects against both parallel and series arc faults
• Application: Ideal for residential branch circuits (bedrooms, living areas, etc.)
• Certifications: UL Listed, Classified for use in Square D, Siemens, Murray, and other panels (check compatibility)
• Installation: Plug-in style for quick and easy mounting

This Eaton AFCI breaker is a smart safety upgrade for code-compliant residential wiring, helping to meet NEC requirements while offering peace of mind against hidden electrical hazards.

Documents:

Brochures
Standard circuit breaker catalog numbers - 5651B63SH09

Specifications and datasheets
Eaton Specification Sheet - CLCAF120
