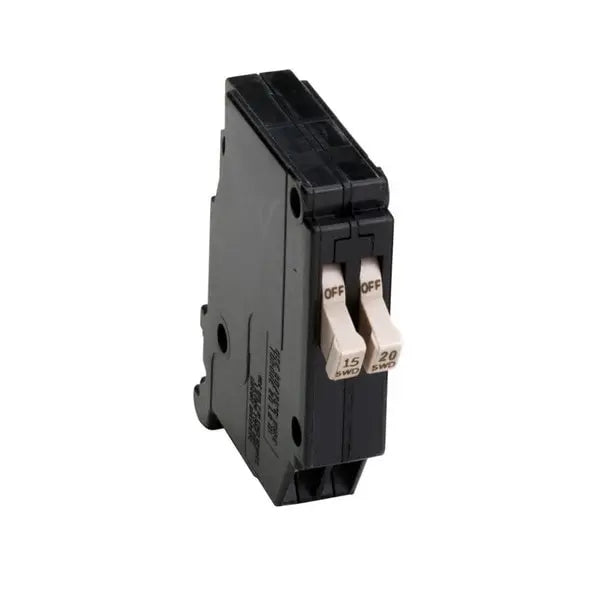

CHT1520 - Eaton CH Thermal Magnetic Circuit Breaker

Eaton CH Thermal Magnetic Circuit Breaker, Type CHT Twin Breaker is designed to provide reliable protection for electrical circuits with a 15-20 A rating. It features a thermal magnetic trip mechanism, ensuring protection against both overloads and short circuits. This single-pole breaker is ideal for use in 120/240 V applications and is compatible with CH Type Loadcenters. With a high interrupting capacity (10 Kaic), it ensures safety in various electrical systems.

Key Features:

• 15-20 A range for versatile circuit protection
• 10 Kaic interrupting capacity for reliable safety
• Single-pole design for 120/240 V AC applications
• Compatible with CH Type Loadcenters
• Switching duty rated and Hcar rated for demanding environments
• Suitable for 50-60 Hz operation
• Accepts 14-8 AWG Cu/Al conductors

This Eaton CH Thermal Magnetic Circuit Breaker, Type CHT Twin Breaker is an ideal solution for managing electrical circuits in residential, commercial, and industrial installations.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CHT1520

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
