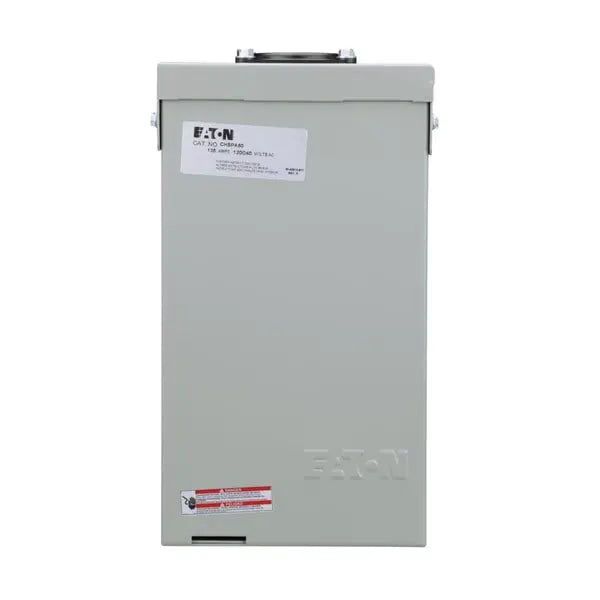

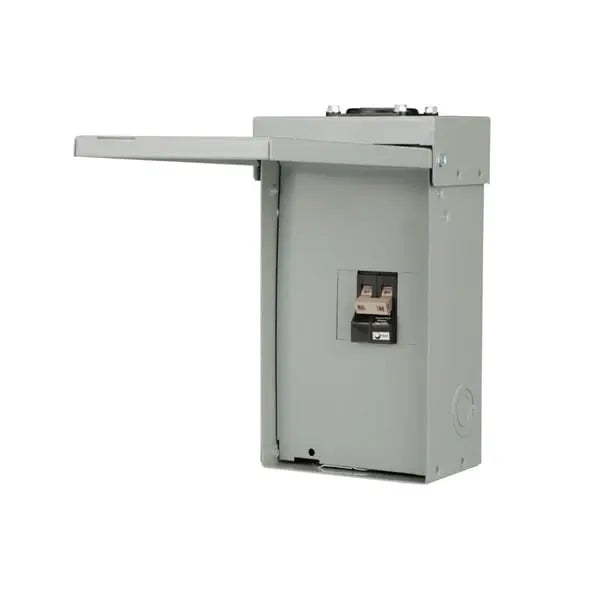

CHSPA60 - Eaton CH Spa Panel

The Eaton CH Spa Panel is a reliable electrical panel designed for use in spa and hot tub installations. Rated for 60A and single-phase, three-wire systems, this panel is ideal for protecting spa circuits from electrical faults. It features two circuits and is compatible with 14-10 AWG copper or aluminum wire (at 60/75°C). Additionally, the panel includes a ground fault self-test feature, ensuring ongoing protection and reliable operation by testing the ground fault circuit interrupter (GFCI) functionality automatically.

Key Features:

• Product Type: Spa Panel
• Amperage Rating: 60 A
• Voltage Rating: 120/240V AC
• Phase/Wire: Single-Phase, Three-Wire
• Number of Circuits: 2 Circuits
• Wire Compatibility: 14-10 AWG Copper/Aluminum (at 60/75°C)
• Ground Fault Protection: Self-Test Feature for Ground Fault Circuit Interrupter (GFCI)
• Application: Spa, Hot Tub, and Pool Electrical Protection
• Mounting Style: Surface Mount
• Certifications: UL Listed

The Eaton CH Spa Panel provides enhanced safety for spa installations, offering reliable circuit protection with a built-in GFCI self-test feature to ensure continuous fault detection and protection.

Documents:

Specifications and datasheets
Eaton Specification Sheet - CHSPA60
