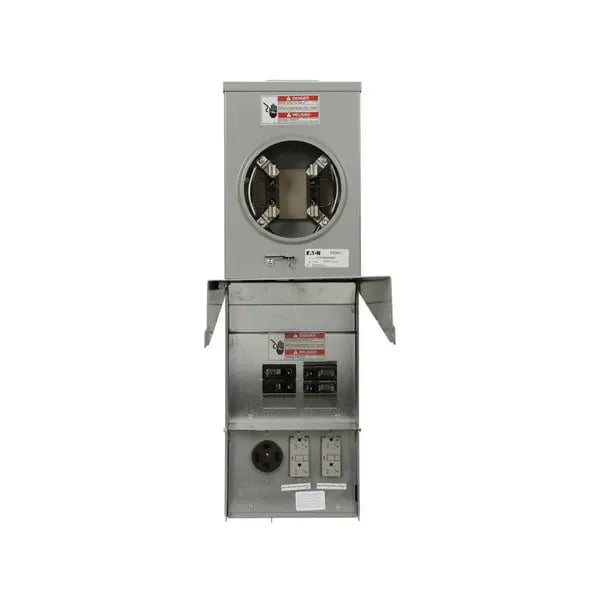

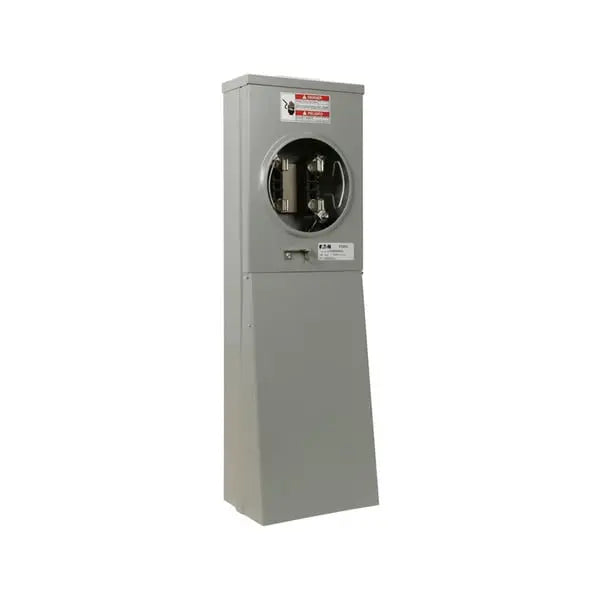

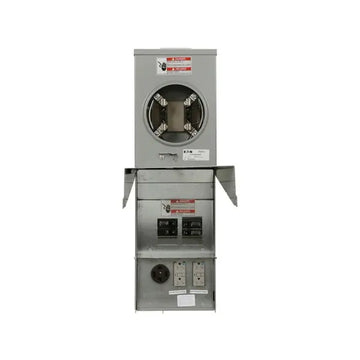

CHR9N9NSU - Eaton Pedestal Mount Metered

The Eaton Pedestal Mount Metered is a versatile and durable electrical distribution solution designed for various applications, including outdoor and residential installations. This pedestal features a metered design, providing reliable monitoring of electrical usage. It offers positions for non-ground fault protection, ensuring safety and efficient operation. The pedestal includes 4 circuits, with weather-resistant and tamper-resistant receptacles on both the center and left sides. The receptacles are equipped with NEMA 5-20R2GFI WR TR configurations, providing added safety and durability in harsh environments. The right-side receptacle is designed for other electrical configurations, offering flexibility for different applications.

Key Features:

• Type: Pedestal Mount Metered
• Positions:
• Pos 1: Non-GND Fault
• Pos 2: Non-GND Fault
• Pos 3: None
• Circuit Capacity: 4 circuits
• Receptacle Configuration:
• Center: NEMA 5-20R2GFI WR TR
• Left: NEMA 5-20R2GFI WR TR
• Right: N (unspecified receptacle type)
• Weather and Tamper Resistance: Weather-resistant and tamper-resistant center and left receptacles for added durability
• Application: Suitable for outdoor use and environments requiring reliable electrical protection

The Eaton Pedestal Mount Metered ensures both safety and functionality in outdoor or residential power distribution, making it an excellent choice for a wide range of applications requiring metered, weather-resistant, and tamper-resistant solutions.

Documents:

Catalogs
Residential and Light Commercial, Power Pedestals, Volume 1 Tab 5

Specifications and datasheets
Eaton Specification Sheet - CHR9N9NSU
