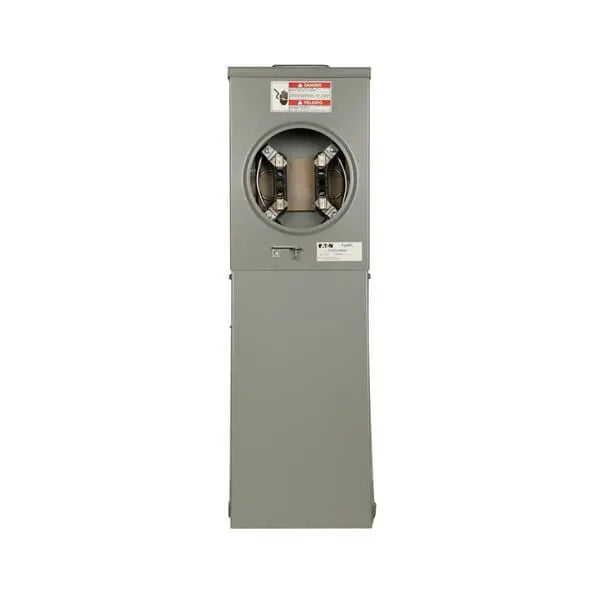

CHR1G9N9NS - Eaton Pedestal Mount Metered

 The Eaton Pedestal Mount Metered is a versatile and durable electrical distribution unit designed for outdoor and commercial use. This meter pedestal features multiple positions for ground fault and non-ground fault circuits, offering flexibility for various applications. It is designed to be mounted on the surface, providing easy access and secure connections for electrical services. The pedestal supports four circuits and includes several NEMA outlets for diverse power needs. The ringless design ensures enhanced security by preventing unauthorized access to the electrical connections.

Key Features:

• Product Type: Pedestal Mount Metered
• Mounting Style: Surface mount for secure installation
• Circuit Positions:
• Pos 1: Ground Fault
• Pos 2: Non-Ground Fault
• Pos 3: Non-Ground Fault
• Circuits: 4 total circuits for flexible power distribution

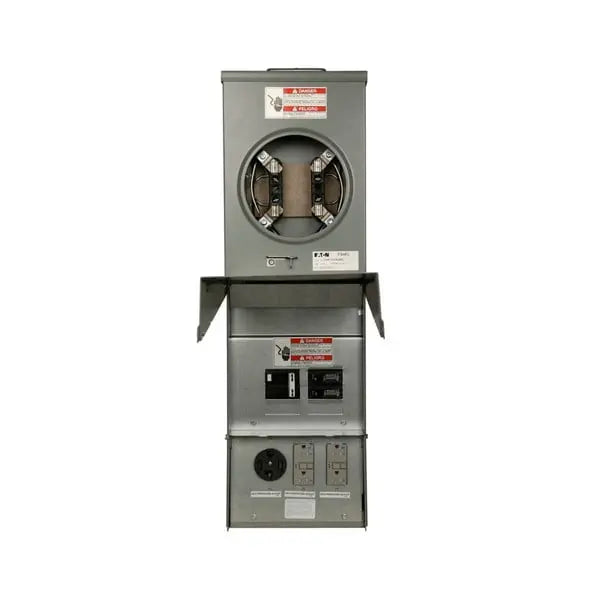

• NEMA Outlets:
• Center: NEMA 5-20R2GFI WR TR (Ground Fault)
• Left: NEMA 14-50R (for high-power applications)
• Right: NEMA 5-20R2GFI WR TR (Ground Fault)
• Design: Ringless for added security

This Eaton Pedestal Mount Metered unit is ideal for locations requiring reliable, metered electrical distribution with easy access to multiple outlets. Its rugged construction and flexible circuit setup make it suitable for various commercial, industrial, and residential applications.

Documents:

Catalogs
Residential and Light Commercial, Power Pedestals, Volume 1 Tab 5

Specifications and datasheets
Eaton Specification Sheet - CHR1G9N9NS
