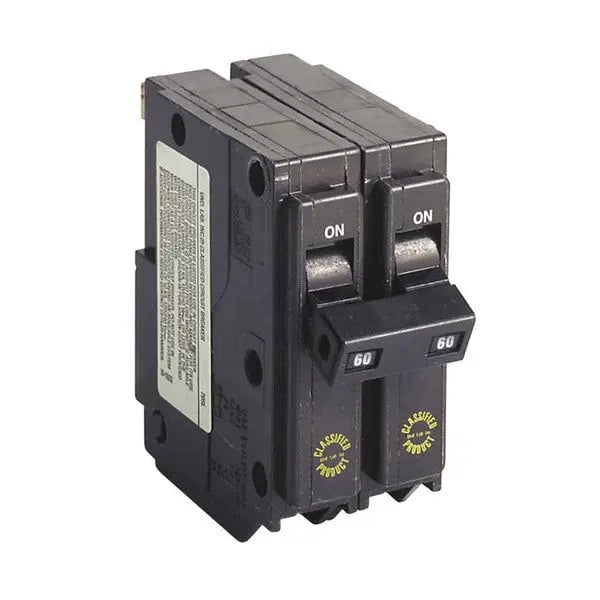

CHQ260 - Standard Trip Circuit Breaker

This 60A Standard Trip Circuit Breaker offers dependable protection for medium to high-load electrical circuits. Featuring a common tripping mechanism, it ensures synchronized disconnection during overload or short circuit conditions. The plug-on design and line and load lug terminals make installation straightforward, ideal for 240V AC systems in residential, commercial, or light industrial settings.

Key Features:

• 60A current rating supports higher-demand circuits
• Common trip mechanism provides simultaneous pole disconnection
• Plug-on installation simplifies setup and replacement
• Equipped with line and load lug terminals for secure wiring
• Dimensions: 3" height, 2.5" length, 1.5" width
• Lightweight construction at 0.6 lb for easy handling

An excellent choice for applications requiring robust circuit protection and ease of use.

This 60A Standard Trip Circuit Breaker offers dependable protection for medium to high-load electrical circuits. Featuring a common tripping mechanism, it ensures synchronized disconnection during overload or short circuit conditions. The plug-on design and line and load lug terminals make installation straightforward, ideal for 240V AC systems in residential, commercial, or light industrial settings.

Key Features:

• 60A current rating supports higher-demand circuits
• Common trip mechanism provides simultaneous pole disconnection
• Plug-on installation simplifies setup and replacement
• Equipped with line and load lug terminals for secure wiring
• Dimensions: 3" height, 2.5" length, 1.5" width
• Lightweight construction at 0.6 lb for easy handling

An excellent choice for applications requiring robust circuit protection and ease of use.

Documents:

Brochures

Standard circuit breaker catalog numbers - 5651B63SH09
Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - CHQ260
