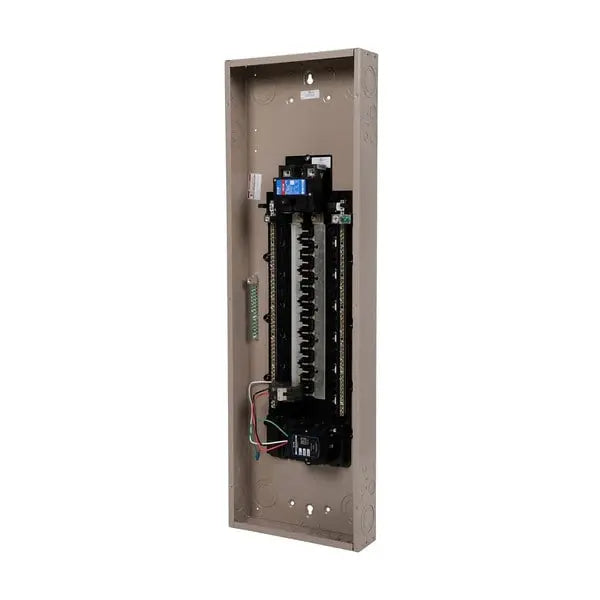

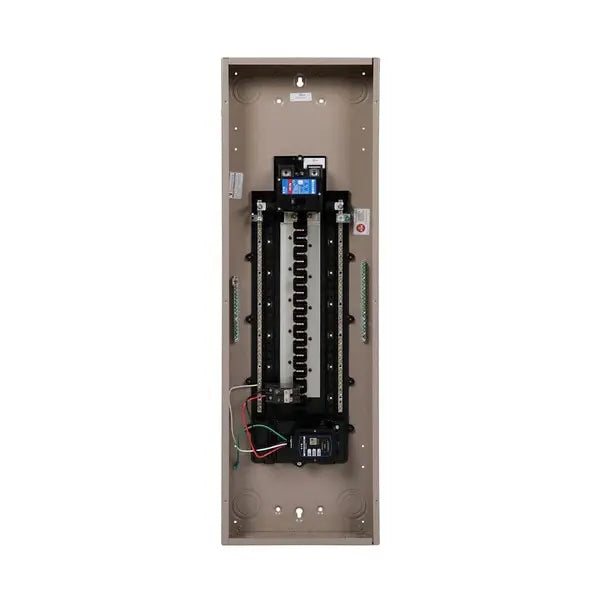

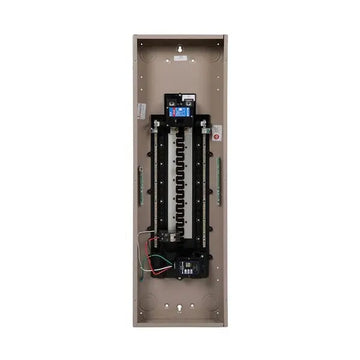

CHPY44B200X9 - Eaton CH Surge Loadcenter With Surge Included

The Eaton CH Surge Loadcenter with Surge Protection Included delivers a powerful combination of electrical distribution and whole-home surge protection in one integrated solution. Engineered for residential and light commercial use, this 200 Amp, single-phase panel offers reliable performance and compliance with modern electrical code standards.

Built with a copper bus bar and rated at 25 kAIC interrupting capacity, this Plug-On Neutral (PoN) loadcenter simplifies installation while ensuring a strong, secure connection. The panel supports up to 44 spaces / 88 circuits, making it ideal for both new constructions and system upgrades.

Its NEMA 1 enclosure is suitable for indoor use, and it accepts wire sizes from 2 AWG to 300 kcmil, allowing for flexibility in wiring configurations. With an integrated surge protective device, it provides enhanced protection for sensitive electronics and appliances against voltage spikes.

Key Features:

• Integrated surge protection for whole-home coverage
• 200 A main breaker, 25 kAIC interrupting capacity
• Plug-On Neutral (PoN) design with copper bus for efficiency
• NEMA 1 rated enclosure – indoor installation
• Supports up to 44 spaces / 88 circuits
• Compatible with CSR breakers
• Handles wire sizes from 2 AWG to 300 kcmil
• Single-phase, three-wire system at 120/240 V

Choose the Eaton CH Surge Loadcenter for an all-in-one solution that offers powerful protection, maximum circuit capacity, and long-term reliability for your home or project.

Documents:

Multimedia - AFCI Educational Video

Warranty guides - Eaton type CH circuit breaker limited warranty June 2024-CHPY44B200X9
