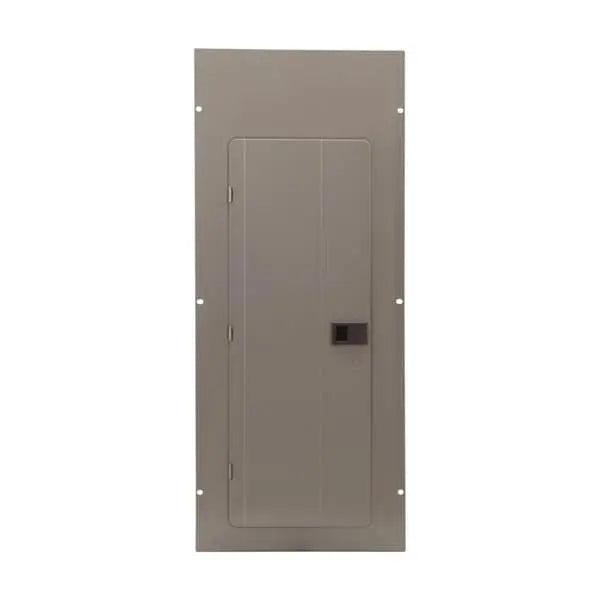

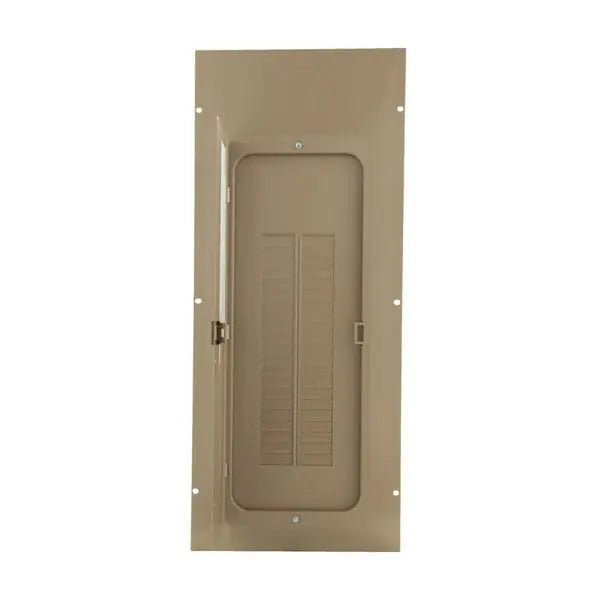

CHPX6LS - Eaton CH Surface Cover

The Eaton CH Surface Cover is a high-quality accessory designed for use with Eaton Type CH loadcenters. Rated at 225A, this surface cover supports up to 32 single-pole spaces and is compatible with CH 0.75-inch Plug-On Neutral breakers. It features a NEMA 1 steel construction for indoor use, offering durable protection for panel interiors. The sandelwood finish adds a clean, professional appearance. With dimensions of 34 inches in height and 15 inches in width, this surface-mount cover is ideal for residential or light commercial electrical systems operating at 120/240V.

Key Features:

• Product Type: Type CH Surface Cover
• Amperage Rating: 225A
• Voltage Rating: 120/240V
• Breaker Compatibility: CH 0.75-inch Plug-On Neutral breakers
• Pole Configuration: Single-Pole
• Circuit Capacity: 32 Spaces
• Material: Durable Steel Construction
• Finish: Sandelwood for a clean, finished look
• Mounting Style: Surface Mount
• Dimensions: 34" Height x 15" Width
• NEMA Rating: NEMA 1 (Indoor use)
• Application: Ideal for residential and light commercial CH loadcenter installations

This Eaton CH Surface Cover offers a reliable, protective, and aesthetically pleasing solution for completing your Type CH panel installations.
