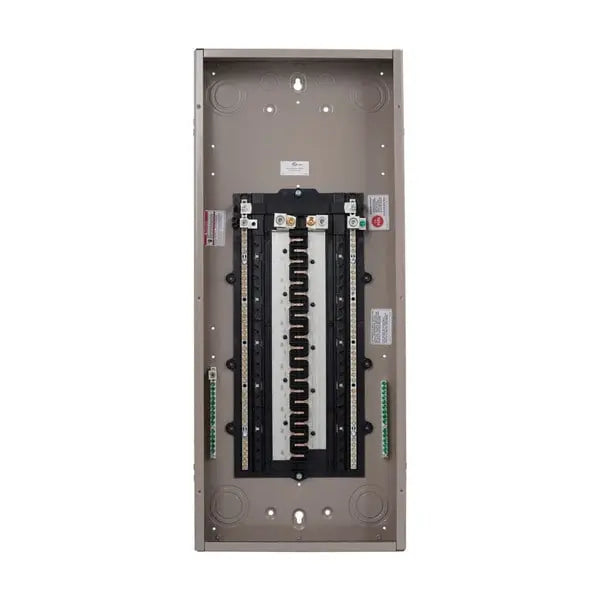

CHP42L225X6 - Eaton CH Main Lug Loadcenters

The Eaton CH Main Lug Loadcenter is a high-performance solution for residential and light commercial electrical distribution. Designed for Plug-On Neutral (PoN) breakers, this 225 Amp loadcenter supports up to 42 circuits with 84 single-pole spaces, providing flexible and code-compliant power management.

Built with a durable copper bus for enhanced conductivity and long-term reliability, this main lug-only panel is rated for 120/240V single-phase systems and features a 10kAIC interrupting capacity. Its metallic NEMA 1 enclosure ensures safe, indoor operation, while the panel supports wire sizes from 4 AWG to 300 kcmil—accommodating a variety of installation needs.

Ideal for both new construction and service upgrades, the CH Loadcenter includes provisions for two hot conductors, one neutral, and one ground, making it a robust and scalable solution for modern electrical systems.

Key Features:

• Main Lug Only configuration, 225 Amp rating
• 84 single-pole / 42 circuit capacity
• Compatible with Eaton CH Plug-On Neutral breakers
• Copper bus for superior durability and conductivity
• Single-phase, 120/240V, 10kAIC interrupting rating
• Metallic NEMA 1 enclosure for indoor use
• Accepts wire sizes from 4 AWG to 300 kcmil

Power your space with confidence—Eaton’s CH Loadcenter delivers safe, efficient, and reliable energy distribution for today’s demanding applications.
