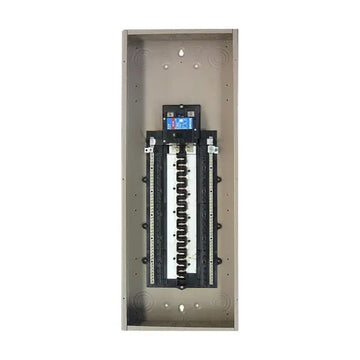

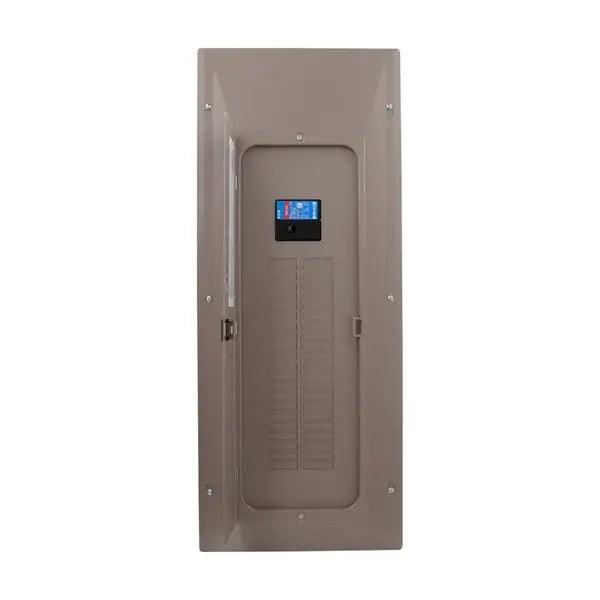

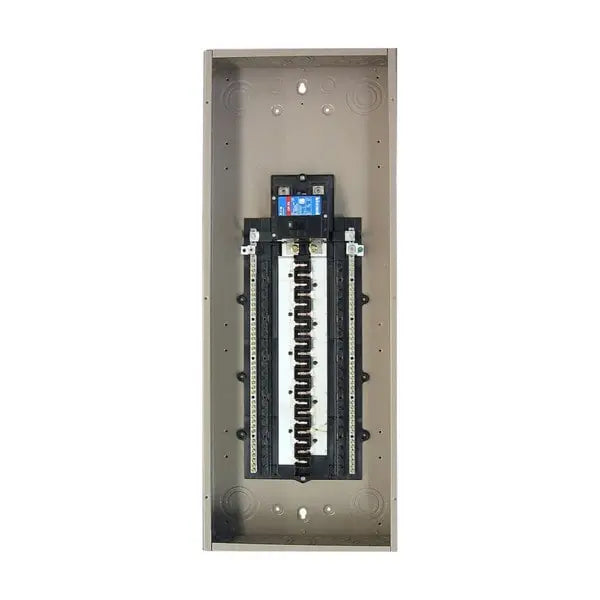

CHP42B225X7 - Eaton CH Main Breaker Loadcenters

The Eaton CH Main Breaker Loadcenter offers a reliable and robust solution for managing electrical loads in both residential and commercial applications. It features a 225 A main breaker with copper bus and is housed in a durable NEMA 1 metallic enclosure. This loadcenter is rated for 25 Kaic and supports up to 84 circuits, with 42 spaces. It is designed for a three-wire, single-phase system and is compatible with wire sizes ranging from 2 AWG to 300 Kcmil, making it a versatile choice for 120/240 V installations.

Key Features:

• 225 A main breaker with copper bus for excellent performance
• NEMA 1 metallic enclosure rated for 25 Kaic interrupt capacity
• Supports up to 84 circuits and 42 spaces
• Three-wire, single-phase system with 2 AWG to 300 Kcmil wire size
• Suitable for 120/240 V installations

This Eaton CH Main Breaker Loadcenter is ideal for handling high power demands while ensuring safety and reliability.

Documents:

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CHP42B225X7

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
