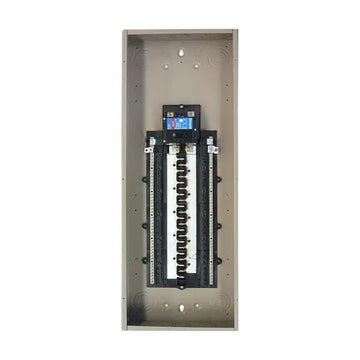

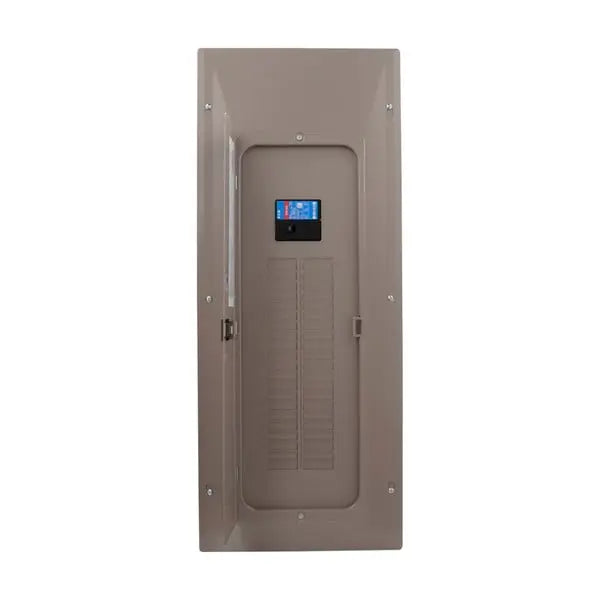

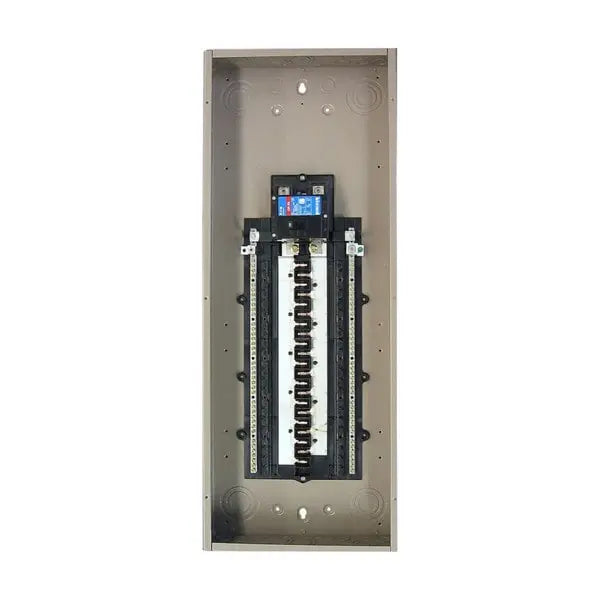

CHP42B200X7 - Eaton CH Main Breaker Loadcenters
The Eaton CH Main Breaker Loadcenter is built for high-capacity, indoor residential or light commercial power distribution. With a 200 Amp main breaker and 42 spaces (84 circuit capacity), this panel offers maximum flexibility and expansion.
Featuring a copper bus for optimal conductivity and a NEMA 1 metallic enclosure, it ensures dependable indoor operation. It is rated for 25 Kaic interrupting capacity, providing strong protection against electrical faults.
This loadcenter supports three-wire, single-phase, 120/240V systems and accommodates 2 AWG to 300 kcmil wire sizes, allowing for versatile installation options.
Key Features:
- 200 Amp main breaker with factory-installed CSR breaker
- 42 spaces, 84 circuit capability for large-scale power needs
- Copper bus ensures reliable current flow
- NEMA 1 metallic enclosure for durable indoor use
- 25 Kaic interrupting rating for enhanced fault protection
- Supports three-wire, single-phase, 120/240V systems
- Wire size range: 2 AWG to 300 kcmil
The Eaton CH Main Breaker Loadcenter delivers exceptional performance and capacity, making it the ideal choice for robust and expandable indoor electrical systems.
