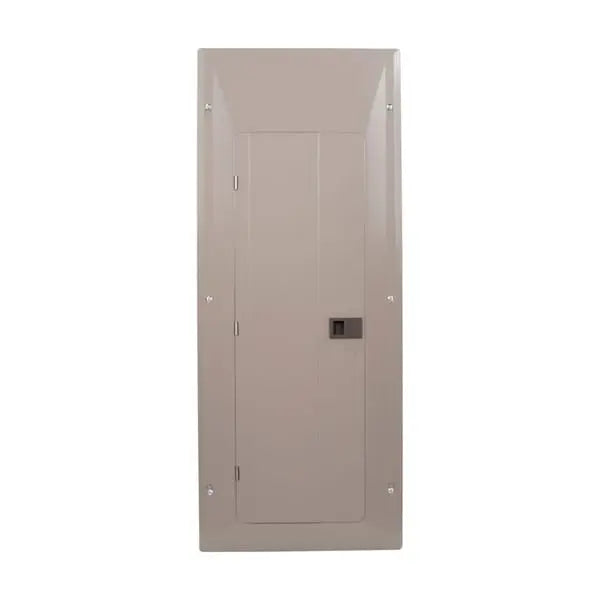

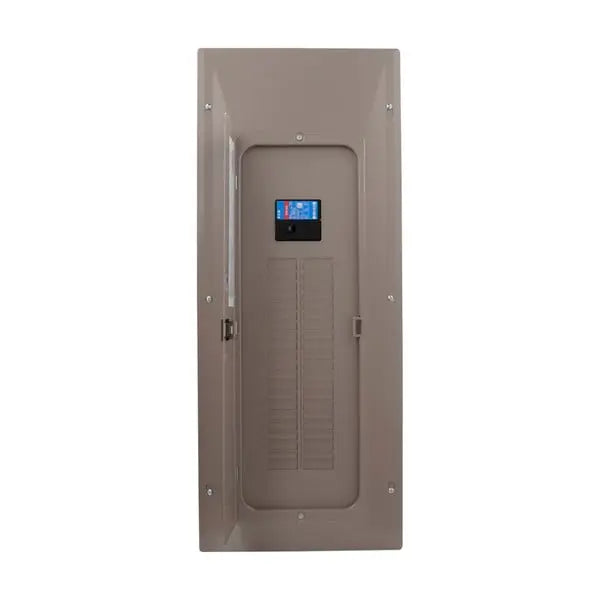

CHP32B225R - Eaton CH Main Breaker Loadcenters

The Eaton CH Main Breaker Loadcenter is a high-performance electrical distribution panel that provides reliable and efficient service for residential and commercial electrical systems. This loadcenter comes with a 225 A main breaker, a copper bus, and a NEMA 3R metallic enclosure, making it suitable for outdoor and overhead installations. It offers 32 spaces and 64 circuits, allowing for extensive circuit management and capacity. With a single-phase configuration, it is designed to handle 120/240V systems.

Key Features:

• Main Breaker Rating: 225 A
• Bus Material: Copper
• Enclosure Type: NEMA 3R, metallic, weather-resistant
• Phase: Single-Phase
• Number of Spaces: 32
• Number of Circuits: 64
• Voltage Rating: 120/240 V
• Mounting Type: Overhead
• Feed Type: Overhead
• Breaker Type: CSR (Circuit Breaker Type)
• Compatibility: Suitable for use with Eaton CH breakers
• Durability: Designed for both residential and commercial applications with long-lasting protection

This Eaton CH Main Breaker Loadcenter offers a robust, safe, and effective solution for managing electrical circuits in a wide range of applications. It ensures easy installation, effective circuit management, and enhanced protection, making it an ideal choice for both new installations and replacements. The NEMA 3R rating ensures that it performs reliably in harsh outdoor conditions, while the copper bus offers superior conductivity and long-term durability.

Documents:

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CHP32B225R

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
