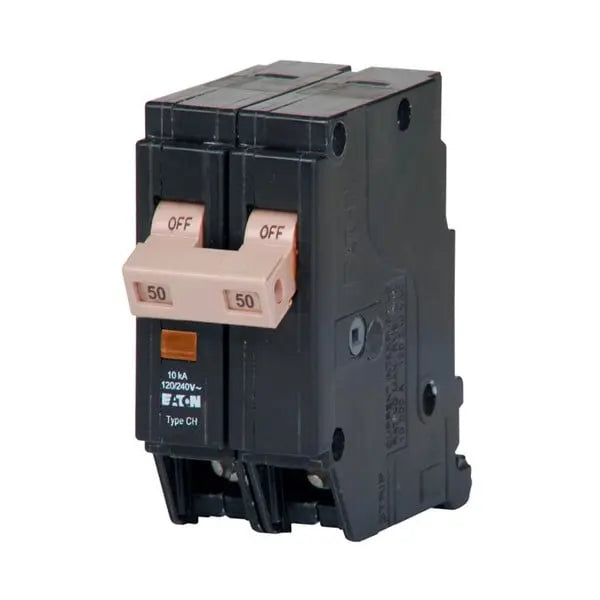

CHF250 - Eaton CH Thermal Magnetic Circuit Breaker

The Eaton CH Thermal Magnetic Circuit Breaker is a high-performance solution designed to deliver dependable protection and easy operation in residential and light commercial electrical systems. Featuring thermal-magnetic trip technology, this breaker provides both overload and short-circuit protection, ensuring safe and consistent power distribution.

This two-pole, 50 amp breaker is rated for 120/240 V and boasts a 10 kAIC interrupting capacity. Designed to fit Type CH loadcenters, it features a 3/4-inch standard frame, common breaker trip, and a Trip Flag indicator for easy troubleshooting. The breaker supports wire sizes from 10 to 1/0 AWG for both copper and aluminum conductors.

Key Features:

• 50 A current rating
• 10 kAIC interrupting capacity
• Two-pole, 120/240 V design
• Fits Type CH loadcenters
• 3/4-inch CHF standard form factor
• Thermal-magnetic trip mechanism
• Trip Flag for visible trip indication
• Common breaker trip for enhanced safety
• Supports 10–1/0 AWG Cu/Al wiring
• UL Listed for safety and reliability

Whether upgrading or installing new, trust the Eaton CHF circuit breaker for efficient, code-compliant, and long-lasting protection

Documents:

Catalogs - Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF250
