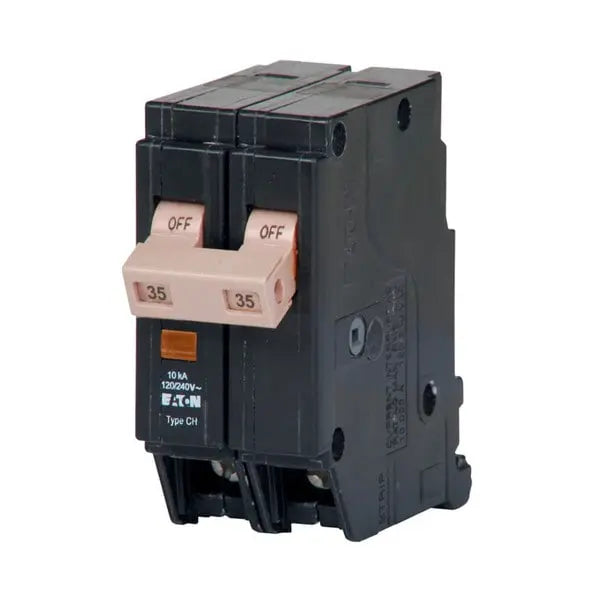

CHF235 - Eaton CH Thermal Magnetic Circuit Breaker

The Eaton CH Thermal Magnetic Circuit Breaker is designed to provide reliable overcurrent protection for electrical systems in residential and light commercial applications. With a 35 A rating and a two-pole configuration, this breaker is suitable for use in Type CH loadcenters. It features a thermal-magnetic design for dependable protection against both overloads and short circuits. The breaker includes a trip flag for easy status indication and is equipped with a common breaker trip mechanism. It supports wire sizes ranging from 14 AWG to 8 AWG (Cu/Al), making it versatile for various installations.

Key Features:

• 35 A current rating for effective circuit protection
• Two-pole configuration suitable for 120/240V systems
• Thermal-magnetic design for reliable overload and short circuit protection
• Trip flag for easy status indication
• Common breaker trip mechanism for safety
• Compatible with Type CH loadcenters
• Accepts wire sizes from 14-8 AWG (Cu/Al)
• 10 KAIC interrupting rating for enhanced safety

This circuit breaker is an essential component for maintaining electrical safety and protecting sensitive equipment in both residential and commercial environments.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CHF235

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
