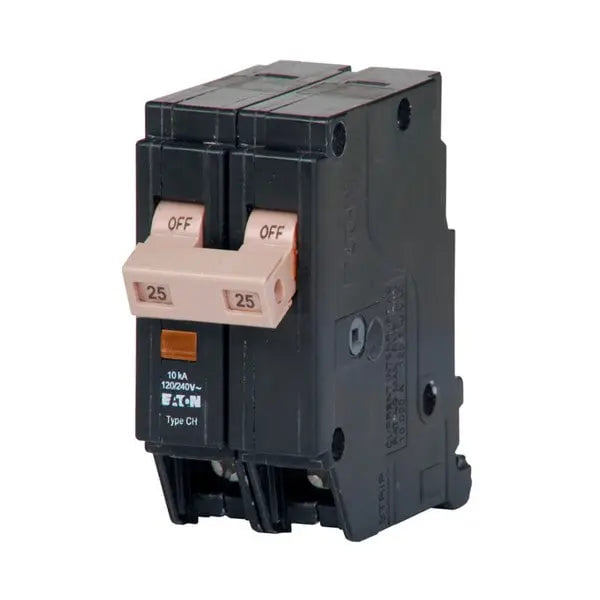

CHF225 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker is designed to provide reliable overcurrent protection in residential and light commercial electrical systems. With a 25-amp rating, this breaker features a common tripping mechanism that ensures both poles trip simultaneously in the event of a fault. Its plug-on design allows for easy installation into compatible load centers. The compact dimensions—3 inches in height and length, and 0.75 inches in width—make it suitable for panels with limited space. Weighing just 0.28 lb, it is lightweight yet durable.

Key Features:

• 25 A current rating for effective circuit protection
• Common tripping mechanism for simultaneous pole interruption
• Plug-on configuration for quick and easy installation
• Compact size: 3 in height, 3 in length, 0.75 in width
• Lightweight design at 0.28 lb
• Suitable for 120/240 V AC applications

The Standard Trip Circuit Breaker offers dependable performance and is an essential component for maintaining electrical safety in various installations.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CHF225

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
