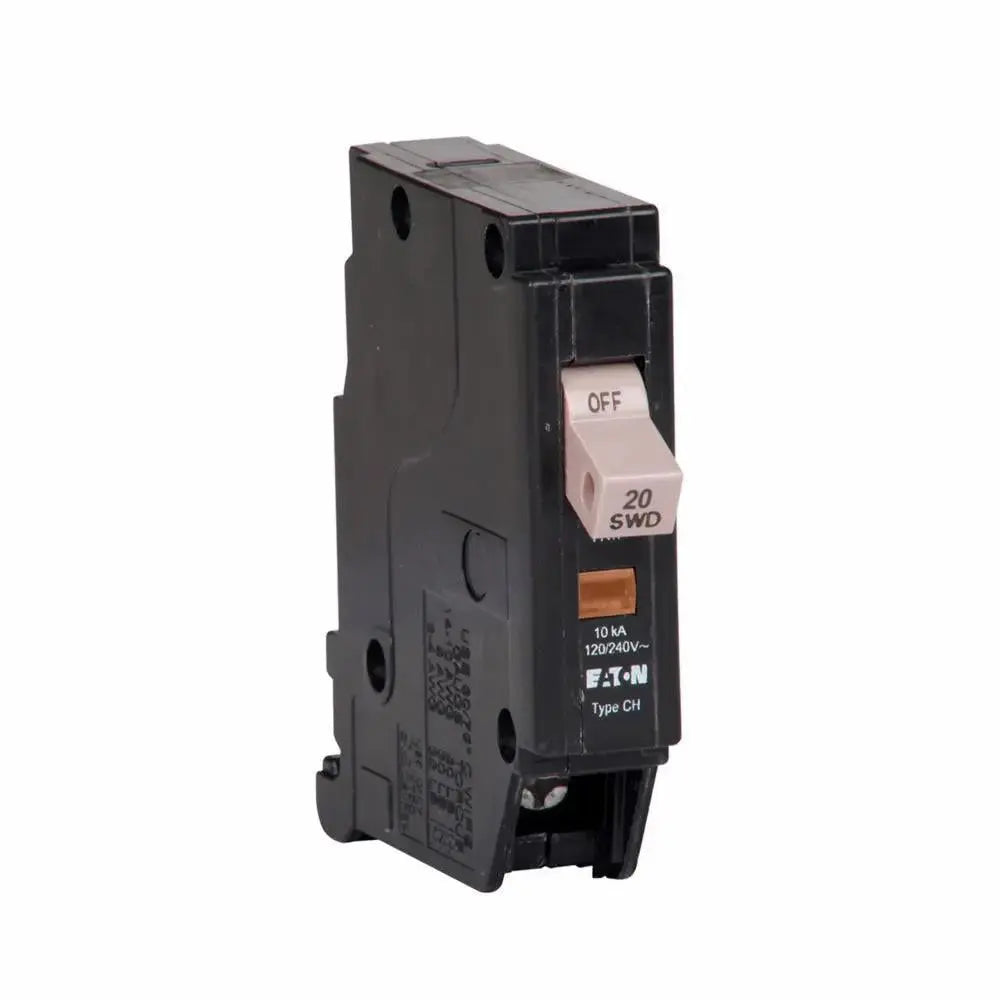

CHF120 - Type CHF BRKR 20A/1P 120/240V 10 Kaic

Overview of the 20 Amp Circuit Breaker 120 240V CHF120 Type CHF BRKR

Type CHF BRKR 20A/1P 120/240V 10 Kaic
Standard Trip Circuit Breaker, 20 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 0.75 In Overall Width, 0.30 LB

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip- free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip co

Key Features:

• Current Rating: 20 A
• Interrupt Rating: 10 kAIC
• Poles: 1
• Voltage Rating: 120/240 V AC


Documents:

Eaton Specification Sheet - CHF120

High-Performance Electrical Protection

The 20 amp circuit breaker 120 240V CHF120 Type CHF BRKR provides robust protection for residential and commercial electrical systems. Designed to handle standard 120/240V circuits, this breaker safely interrupts electrical flow in overload or short circuit conditions. It ensures that wiring and connected devices remain protected from damage, helping to maintain system reliability and safety. With a 10 Kaic interrupting capacity, it efficiently manages short circuit currents without compromising breaker integrity, making it ideal for a wide range of applications.

Durability and Compliance

Built to meet industry standards, the CHF120 Type CHF BRKR circuit breaker offers long-lasting durability and dependable performance. The device complies with key electrical certifications, ensuring safe installation and operation. Constructed with high-quality materials, it resists wear and tear under typical operating conditions. This circuit breaker is designed for easy installation and replacement, minimizing downtime during electrical maintenance tasks. Its compatible form factor fits standard breaker panels, allowing seamless integration into existing systems.

Key Benefits and Applications

This 20 amp circuit breaker 120 240V model is well-suited for protecting lighting circuits, outlets, and small appliances in residential or light commercial environments. The device provides reliable protection and helps prevent electrical fires and equipment damage. Its 10 Kaic short circuit rating allows it to handle unexpected surges, providing additional peace of mind. An excellent choice for electrical contractors and maintenance professionals, the CHF120 Type CHF BRKR combines safety, efficiency, and performance in a compact, user-friendly design.
