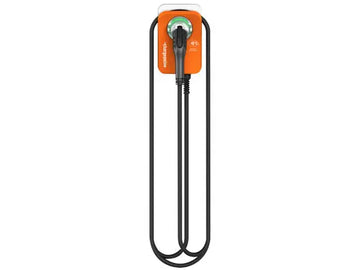

ChargePoint CPF50 Bundle 1-Year LTE Network, Activation, & Mounting Kit Included Single Port 50amp Wall Mount
ChargePoint CPF50-L23 Bundle – Fleet & Multi-Family EV Charging Station
SKU: CPF50-L23 | Ordering Code: CPF50-L23-GW-USA
The ChargePoint CPF50 series with cellular 4G LTE communicates with the Cloud and is perfect for fleet or multi-family use. This allows you to configure the stations to operate as you would like. You can collect payments, monitor usage, check availability, set custom groups, reports, and alerts.
What's Included in This Bundle
- CPF50-L23 Single Port Wall Mount EV Charger with 23ft cord
- Network (CP-SW-STE-CORE-AC-1P-12M): 1-Year Commercial CORE Cloud Plan
- Activation (CPF-ACTIVE): One-time activation
- Mounting Kit
Key Features
- Single port 50A charging
- Cellular 4G LTE connectivity (built-in)
- Wall mount installation
- 23ft (7.0m) charging cord
- 208V or 240V compatible
- 12 kW maximum power delivery
- SAE J1772 connector
- Flexible amperage: configurable to 48A, 40A, 32A, 24A, or 16A (Power Select)
- Power Share capable (two stations share one circuit)
- ENERGY STAR Certified (Cert. No. 2473927)
- Wet location rated – suitable for outdoor use
- Hardwired electrical connection
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ChargePoint |
| Product Line | CPF50 |
| Voltage | 208/240V AC |
| Max Charging Current | 50A |
| Power Delivery | 12 kW |
| Connector Type | SAE J1772™ |
| Cable Length | 7.0m (23 ft) |
| Mounting Type | Wall Mount |
| Network Connectivity | Cellular 4G LTE |
| Local Area Network | 2.4/5 GHz Wi-Fi (802.11 a/b/g/n) |
| Card Reader | ISO 15693 and ISO 14443 |
| Operating Temperature | -40°F to 122°F (-40°C to +50°C) |
| Storage Temperature | -40°F to 140°F (-40°C to +60°C) |
| Operating Humidity | Up to 95% @ +50°C, non-condensing |
| Enclosure Rating | Type 3R per UL 50E (Wet Location Rated) |
| Width | 7.06 in |
| Height | 11.19 in |
| Depth | 7.07 in |
| Weight (Station) | 2.2 kg (4.9 lb) |
| Ground Fault Detection | 20mA CCID with auto retry |
| Surge Protection | 6 kV @ 3000A |
| EMC Compliance | FCC Part 15 Class B |
| Safety & Compliance | UL and C-UL listed; UL2594, UL2231-1, UL2231-2, NEC Article 625, CSA C22.2 No. 280/281.1/281.2, UL916 |
| ENERGY STAR Certified | Yes – Cert. No. 2473927 |
Warranty
Limited 2-Year Parts Warranty. Optional extended warranty available: ChargePoint Assure (CPF-ASSURE1) – 1-Year plan includes parts and labor, remote technical support, on-site repairs, unlimited configuration changes, and reporting.
