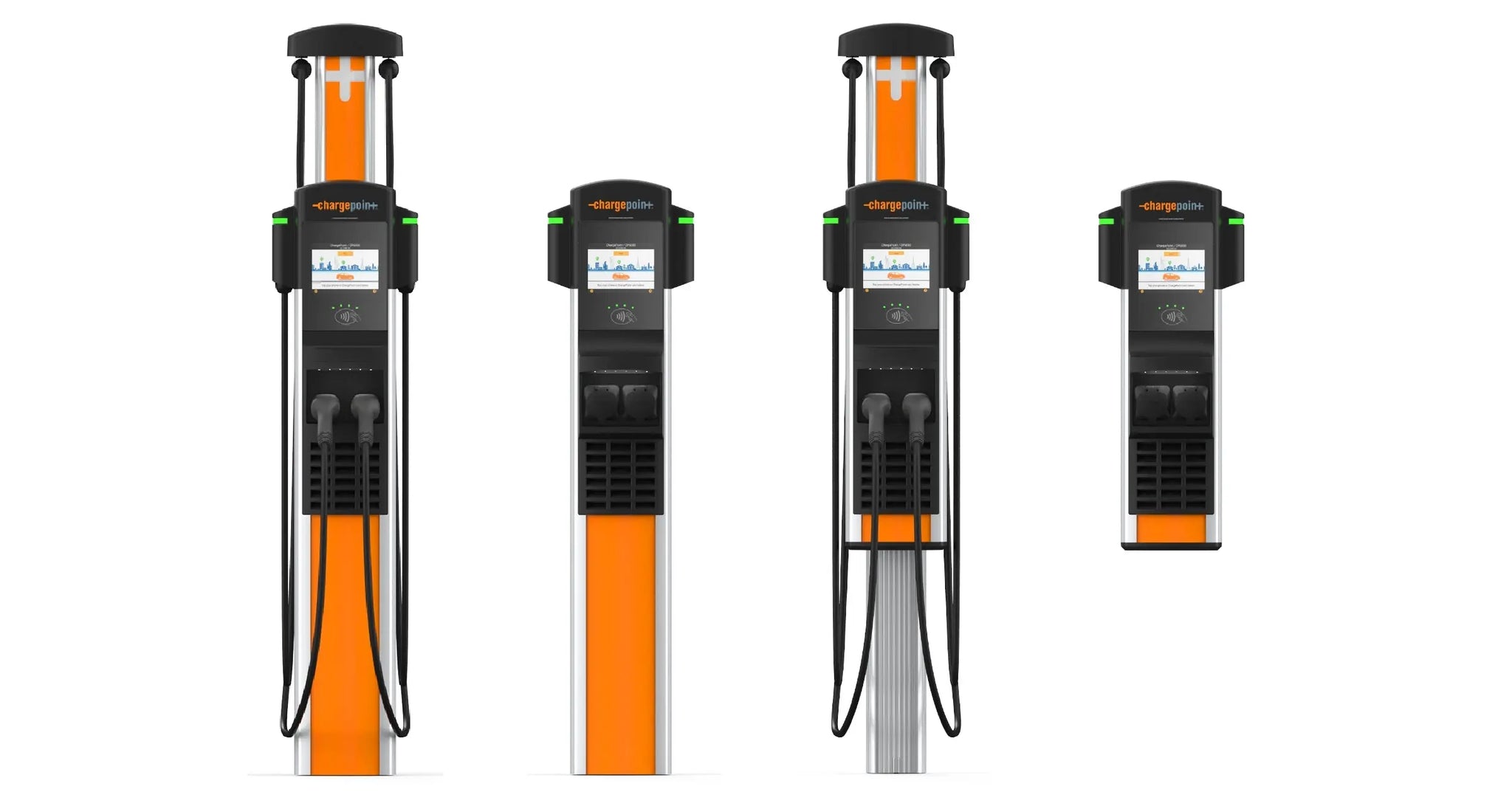

ChargePoint® CP6000 Series AC Commercial EV Charging Stations

Flexible | Future-Ready | Networked Level 2 Charging

Upgrade your commercial EV charging infrastructure with the ChargePoint CP6000 Series — a robust line of Level 2 AC charging stations engineered for adaptability, performance, and smart energy management. With models supporting up to 80A per port, dual- or single-port configurations, and universal vehicle compatibility via J1772 and NACS (OmniPort), the CP6000 Series is ideal for businesses, fleets, multi-family properties, and municipalities.

Product Highlights

Power Options: Available in 50A and 80A configurations
Port Configurations: Single or dual port
Mounting Styles: Pedestal or wall mount
Cable Lengths: 18 ft (5.5 m) or 23 ft (7 m)
Connector Types: SAE J1772 and NACS (OmniPort models)
Smart Load Management:
Power Select: Customizable output from 16A to max
Power Share: Dynamic dual-port energy distribution
Interactive Display: 8” full-color touchscreen with gesture control, multi-language support, and UV protection

Connectivity & Access

Wi-Fi (2.4/5 GHz), LTE (Cat 4), Ethernet-ready
OCPP 2.0.1 compliant for seamless backend integration
Secure user access via:
RFID (ISO 15693 / 14443)
Contactless credit/debit
Apple Pay / Google Pay
Mobile App / In-vehicle display (ISO 15118 supported)
EMV chip reader available on -CHIP models

Technical Specifications

Electrical Input: 208/240 V AC, max 80A; configurable via Power Select
Output Power: Up to 19.2 kW per port (80A); 12.0 kW per port (50A)
Safety & Compliance: UL listed, Type 3R enclosure, FCC Class B, NEC 625, Energy Star
Environmental:
Operating Temp: -40°F to 122°F
Humidity: Up to 85% (non-condensing)
Surge Protection: 6 kV @ 3,000 A
Weight: Pedestal – 77 kg (170 lb), Wall mount – 68 kg (150 lb)
Warranty: Limited 2-year parts warranty

Ideal For:

Corporate campuses
Multi-unit residential properties
Government facilities
Retail and hospitality parking
Electric vehicle fleets

Why Choose the CP6000 Series?

Future-proof: Ready for J1772 and NACS (Tesla standard) with OmniPort models
Secure & Smart: Multiple access options, usage analytics, and remote management
Installer-Friendly: Flexible mounting, configurable amperage, internal GFCI
Cloud-Connected: Integrated with ChargePoint’s enterprise software for energy control, station health, and load balancing

Item Documents Specification Sheet
