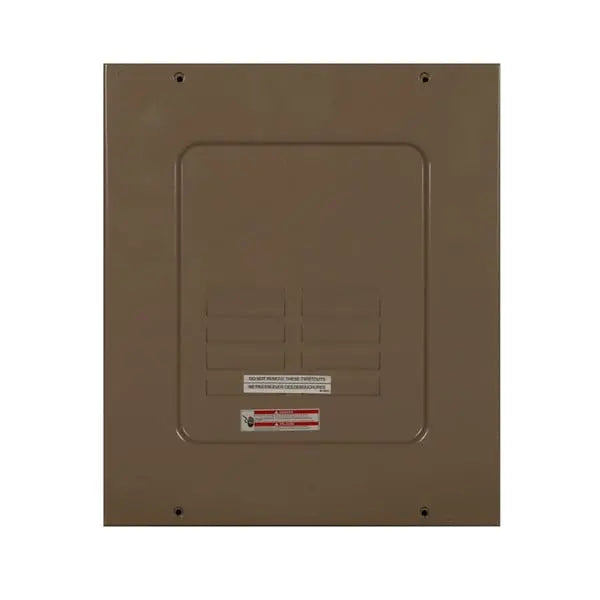

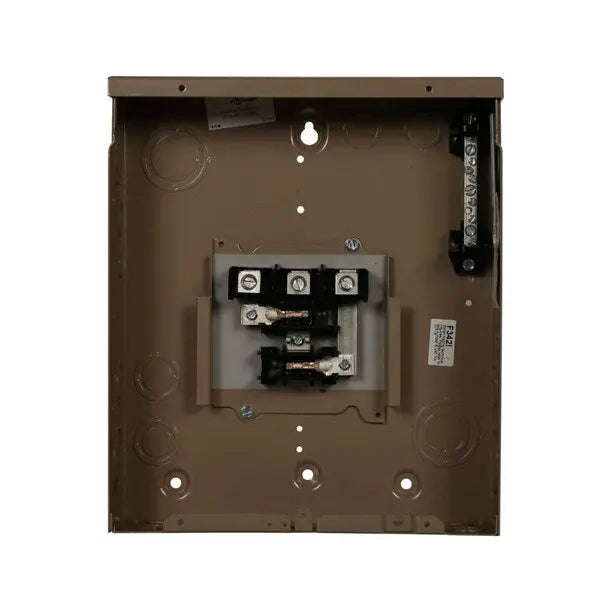

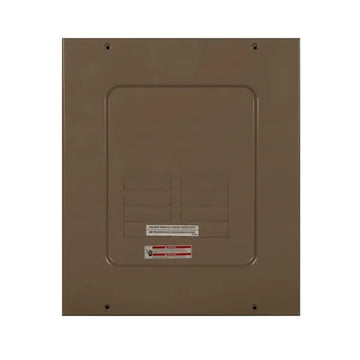

CH6L3125SP - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is a high-performance electrical panel designed for industrial and commercial applications. With a 125 A rating, this load center features a copper bus bar for optimal conductivity and reliability. It supports wire sizes from 14 AWG to 1/2 AWG and provides 6 spaces with 6 circuits for efficient circuit management. This surface-mount model is NEMA 1 rated for indoor use and is suitable for three-phase systems with 120/240V, 208Y/120V, and 240V configurations. The load center does not include a cover, offering flexibility in customization.

Key Features:

• 125 A rating for reliable electrical distribution
• Copper bus bar for enhanced conductivity and durability
• Supports wire sizes from 14 AWG to 1/2 AWG
• NEMA 1 rating for indoor use
• Designed for surface mounting with top/bottom feed

This Eaton CH Main Lug Loadcenter provides an effective and customizable solution for managing electrical circuits in indoor commercial and industrial setups.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH6L3125SP

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
