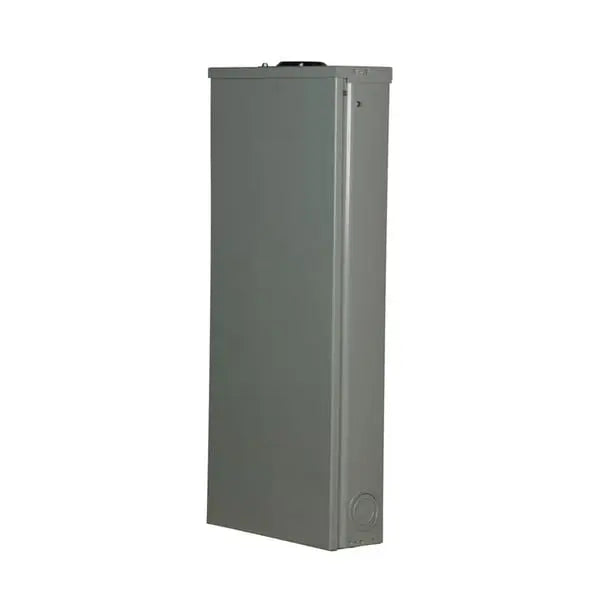

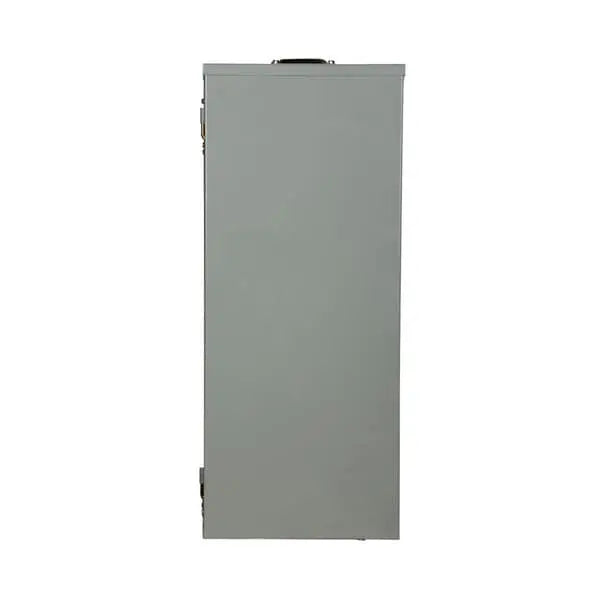

CH42L3225R - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is engineered to deliver reliable power distribution in both residential and commercial outdoor applications. Built with a robust NEMA 3R metallic enclosure, this loadcenter is rated for overhead service and is suitable for environments where exposure to weather conditions is a concern.

With a 225A main lug only configuration, this unit supports up to 42 circuits and 42 spaces, offering flexibility for various wiring needs. Its copper bus ensures excellent conductivity and long-term performance, while the CH series compatibility provides seamless integration with Eaton's premium circuit breakers.

Key Features:

• Type: CH Main Lug Loadcenter (Standard, Main Lug Only)
• Amp Rating: 225 A
• Enclosure Rating: NEMA 3R for outdoor use
• Material: Durable metallic enclosure with copper bus
• Phase/Wire: Three-phase, four-wire
• Circuit Capacity: 42 circuits, 42 spaces
• Bus Material: Copper for superior conductivity
• Conductor Range: 4 AWG – 300 Kcmil
• Mounting: Overhead feed

The Eaton CH 225A Main Lug Loadcenter is ideal for applications requiring high-capacity, weather-resistant load distribution with the added benefits of copper durability and CH breaker system compatibility.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - CH42L3225R

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
