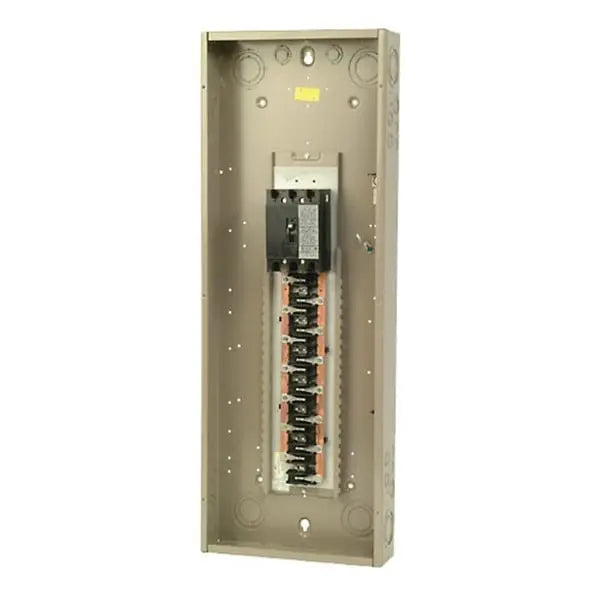

CH42B3200L - Main Circuit Breaker Loadcenter

The Eaton CH Main Breaker Loadcenter (Model: CH42B200R) is a high-capacity electrical distribution panel designed for residential and light commercial applications. With a 200 A rating and a copper bus, it ensures efficient power distribution and circuit protection.This loadcenter supports up to 42 circuits and 42 spaces, making it suitable for various electrical systems.The NEMA 3R-rated metallic enclosure provides durability and protection in outdoor installations, and it's designed for overhead feed applications.It accommodates wire sizes ranging from 2/0 AWG to 300 kcmil,

 offering flexibility for different installation requirements.

Key Features:

• 200 A main breaker with 25 kAIC interrupting capacity
• Supports 42 circuits and 42 spaces for versatile configurations
• Copper bus material for reliable conductivity
• NEMA 3R rated metallic enclosure for outdoor use
• Designed for overhead feed installations
• Accommodates wire sizes from 2/0 AWG to 300 kcmil
• Dimensions: 14.31" L x 3.88" W x 37" H; Weight: 42 lbs

This Eaton CH Main Breaker Loadcenter offers a reliable and efficient solution for managing electrical distribution needs.
