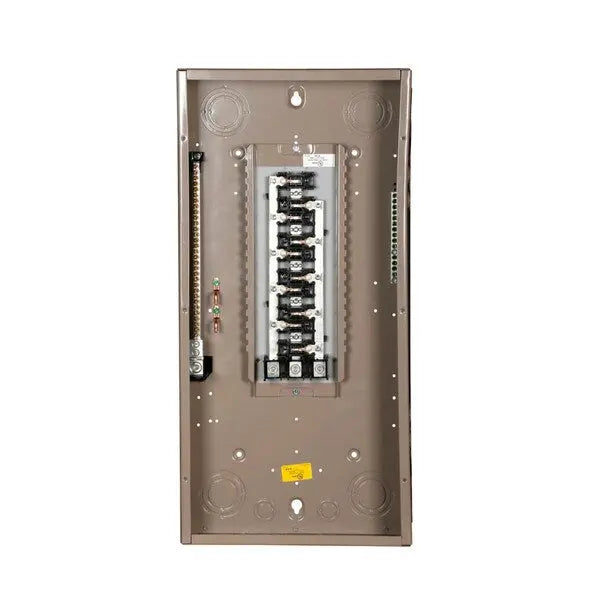

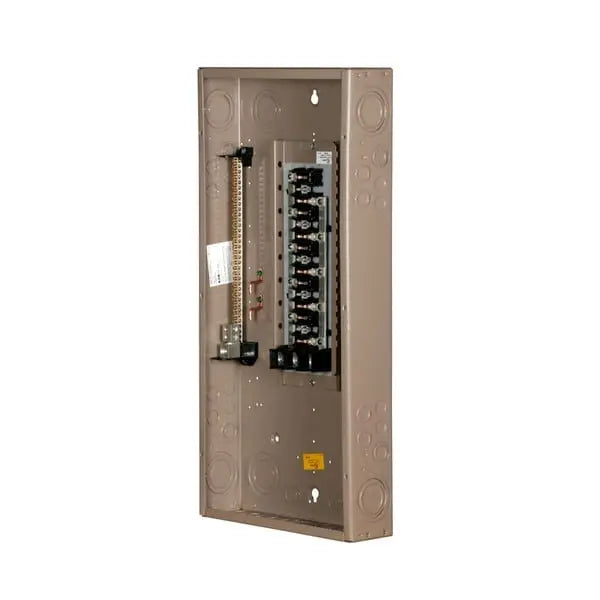

Eaton CH30L3225R 225A 3-Phase Main Lug Loadcenter, 30 Spaces, NEMA 3R
The Eaton CH30L3225R main lug loadcenter provides a 225A electrical distribution solution for three-phase, four-wire systems. With 30 spaces and 30 circuits, it gives you room to organize branch circuits in a NEMA 3R-rated metallic enclosure for outdoor use.
For projects requiring overhead feed, this Eaton CH loadcenter combines copper bus construction with support for conductor sizes from 4 AWG to 300 kcmil. Match the panel to your project's electrical requirements before ordering.
Key features
- 225A rating: for electrical distribution in compatible three-phase systems.
- 30 spaces and 30 circuits: capacity for organizing branch circuits.
- Copper bus construction: Eaton CH-series distribution panel design.
- NEMA 3R metallic enclosure: rated for outdoor use.
- Overhead feed: designed for overhead-feed installations.
Product specifications
- Manufacturer: Eaton
- Model: CH30L3225R
- Series: CH
- Panel type: Main lug loadcenter
- Amperage: 225A
- System: Three-phase, four-wire
- Spaces / circuits: 30 / 30
- Conductor range: 4 AWG–300 kcmil
- Dimensions: 39 inches H × 14.31 inches W × 5.19 inches D
Planning your installation
Review the Eaton specification sheet to confirm electrical ratings, breaker compatibility and installation requirements for your application. Have a qualified electrical professional confirm suitability before installation.
