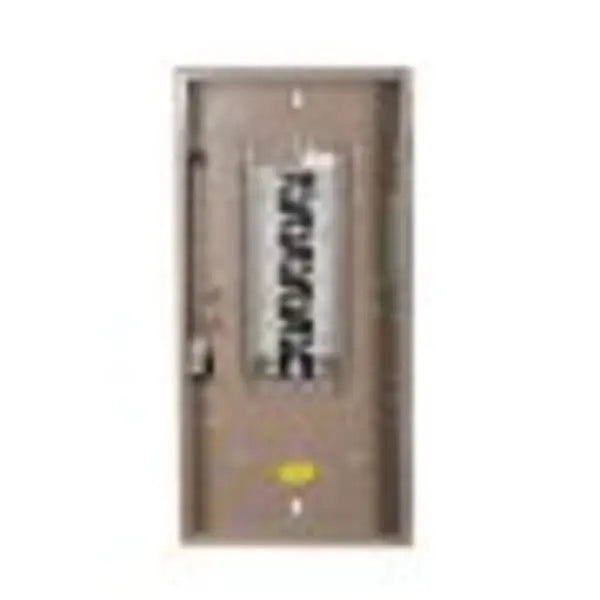

CH30L3225D - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter delivers high-capacity, reliable power distribution in a durable and space-efficient design. With 30 circuits and 30 spaces, this standard main lug loadcenter is ideal for larger residential or light commercial three-phase applications.

Rated at 225 Amps, it supports a four-wire, three-phase system and accommodates a wide range of wire sizes (4 AWG to 300 Kcmil). The copper bus ensures optimal conductivity and long-lasting performance, while the NEMA 1 metallic enclosure provides protection in indoor environments.

Designed for top or bottom feed flexibility, this loadcenter allows efficient installations in various configurations and complies with modern code requirements.

Key Features:

• 225 A main lug rating – suitable for high-capacity applications
• 30 spaces / 30 circuits – ample room for circuit expansion
• Copper bus for superior electrical performance
• Four-wire, three-phase system – versatile compatibility
• Wire range: 4 AWG – 300 Kcmil
• NEMA 1 metallic enclosure for indoor use
• Top/Bottom feed design for flexible installation
• CH series – compatible with Eaton CH breakers

The Eaton CH 225A Main Lug Loadcenter is a trusted solution for dependable power distribution where performance, expandability, and safety are critical.
