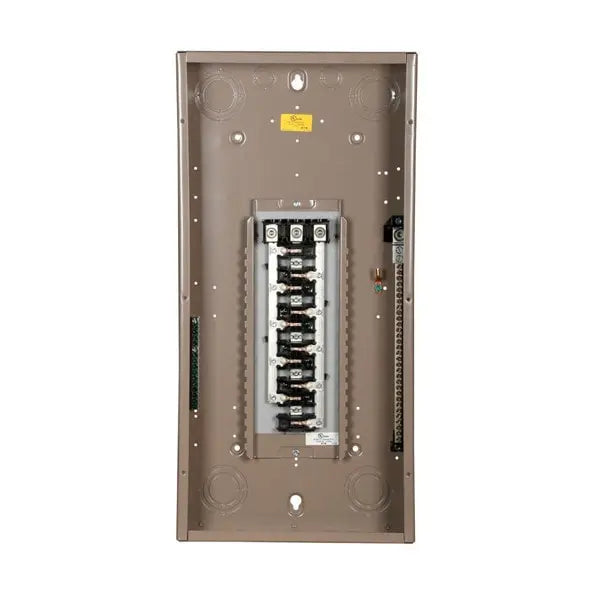

CH30L3150D - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is a high-performance electrical distribution solution designed for commercial and industrial use. Rated for 150A, this main lug only loadcenter features a copper bus for superior conductivity and durability. With a NEMA 1 metallic enclosure, it is built for indoor use and offers both top and bottom feed options. The loadcenter supports 30 circuits and 30 spaces, making it ideal for a wide range of applications. It accommodates four-wire, three-phase systems and is compatible with wire sizes ranging from 4 AWG to 300 Kcmil, providing versatility for various installations.

Key Features:

• Type: Main Lug Only Loadcenter
• Amperage: 150 A
• Bus Material: Copper for improved conductivity and durability
• Enclosure Rating: NEMA 1 – suitable for indoor use

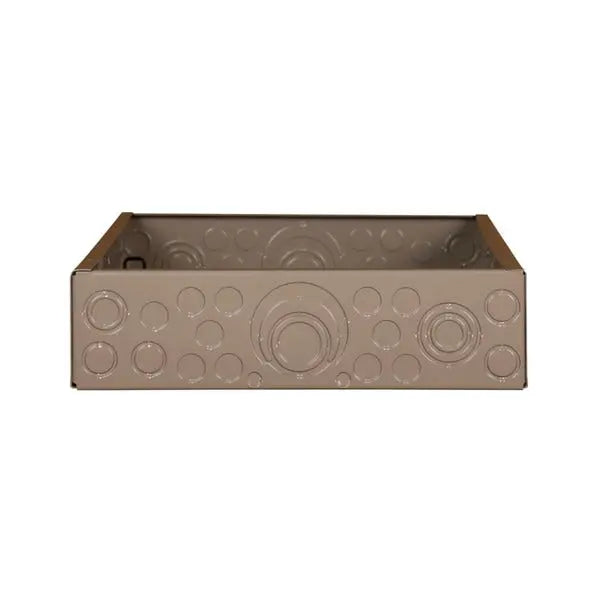

• Enclosure Type: Metallic with top/bottom feed options
• Circuits/Spaces: 30 circuits, 30 spaces
• System Type: Four-wire, three-phase
• Wire Size Range: 4 AWG to 300 Kcmil
• Application: Ideal for commercial and industrial electrical systems

This loadcenter offers robust protection and flexibility, making it an essential component for safely distributing power in multi-phase electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH30L3150D

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
